GATE 2024 EE question paper PDF and answer key

The official GATE 2024 Electrical Engineering paper, organised by IISc Bengaluru: 65 questions for 100 marks in 3 hours. Download the official question paper and answer key as PDFs. Below is how the marks were split by topic, the complete official answer key and 5 questions solved step by step.

Take this paper as a timed testTry the free demo
Question paper (PDF)Official answer key (PDF)

Source: the official paper and answer key published by IISc Bengaluru for GATE 2024 (official GATE site). Spotted a mistake? Email team@lemyte.com.

General Aptitude
10 · 15 marks
Electrical Engineering
55 · 85 marks
MCQ / MSQ / NAT
35 / 7 / 23
Marks to all
Q 7, 18

Where the marks were

GATE 2024 EE topic-wise marks

Electrical Engineering questions only; General Aptitude adds 15 marks on top. The top three topics carried 32 of the 85 subject marks.

TopicQuestionsMarks
Signals and Systems711
Power Electronics711
Power Systems610
Control Systems69
Analog and Digital Electronics69
Electrical Machines58
Electric Circuits57
Calculus36
Electromagnetic Fields24
Electrical and Electronic Measurements23
Linear Algebra22
Complex Variables22
Differential Equations12
Probability and Statistics11

Free solved questions

5 solved questions from GATE 2024 EE

Question text and figures as in the official paper, the answer from the official key, and a worked solution. The other 60 solutions are in your report after you take the paper.

Q6 · General Aptitude · MCQ · 2 marks

In the given text, the blanks are numbered (i)-(iv). Select the best match for all the blanks.

Following a row (i) _____ the shopkeeper (ii) _____ the price of a frying pan, the cook stood (iii) _____ a row to withdraw cash (iv) _____ the ATM booth.

  • (A)
    (i) with (ii) over (iii) at (iv) with
  • (B)
    (i) at (ii) over (iii) over (iv) in
  • (C)
    (i) with (ii) over (iii) in (iv) at
  • (D)
    (i) over (ii) with (iii) over (iv) at

Answer (official key): C

Solution

"A row with the shopkeeper" = argument; "over the price" = dispute; "stood in a row" = queue; "at the ATM booth" = location. Therefore, the correct answer is Option C.

Q8 · General Aptitude · MCQ · 2 marks

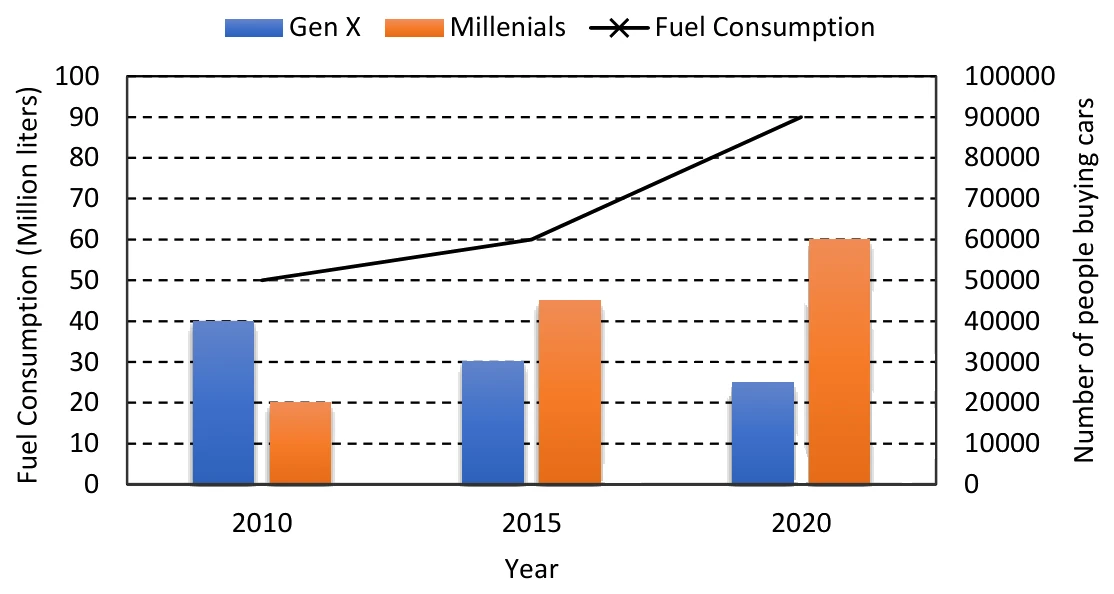

The chart below shows the data of the number of cars bought by Millennials and Gen X people in a country from the year 2010 to 2020 as well as the yearly fuel consumption of the country (in Million liters).

Considering the data presented in the chart, which one of the following options is true?

Source figure

  • (A)
    The percentage increase in fuel consumption from 2010 to 2015 is more than the percentage increase in fuel consumption from 2015 to 2020.
  • (B)
    The increase in the number of Millennial car buyers from 2015 to 2020 is less than the decrease in the number of Gen X car buyers from 2010 to 2015.
  • (C)
    The increase in the number of Millennial car buyers from 2010 to 2015 is more than the decrease in the number of Gen X car buyers from 2010 to 2015.
  • (D)
    The decrease in the number of Gen X car buyers from 2015 to 2020 is more than the increase in the number of Millennial car buyers from 2010 to 2015.

Answer (official key): C

Solution

From the chart (buyers in thousands): Gen X 40 → 30 → 25, Millennials 20 → 45 → 60, fuel 50 → 60 → 90 million litres.

  • (A) Fuel rose 20% then 50%: false.
  • (B) Millennials +15 (2015–20) vs Gen X −10 (2010–15): false.
  • (C) Millennials +25 (2010–15) is more than the Gen X −10 decrease: true.
  • (D) Gen X fell only 5 in 2015–20: false.

Q47 · Power Systems · MSQ · 2 marks

Which of the following options is/are correct for the Automatic Generation Control (AGC) and Automatic Voltage Regulator (AVR) installed with synchronous generators?

  • (A)
    AGC response has a local effect on frequency while AVR response has a global effect on voltage.
  • (B)
    AGC response has a global effect on frequency while AVR response has a local effect on voltage.
  • (C)
    AGC regulates the field current of the synchronous generator while AVR regulates the generator's mechanical power input.
  • (D)
    AGC regulates the generator's mechanical power input while AVR regulates the field current of the synchronous generator.

Answer (official key): B, D

Solution

AGC controls system frequency (a global quantity) by adjusting the generator's mechanical power input. AVR controls terminal voltage (a local quantity) by adjusting the field current. Therefore, the correct answers are Options B and D.

Q48 · Electric Circuits · Numerical · 2 marks

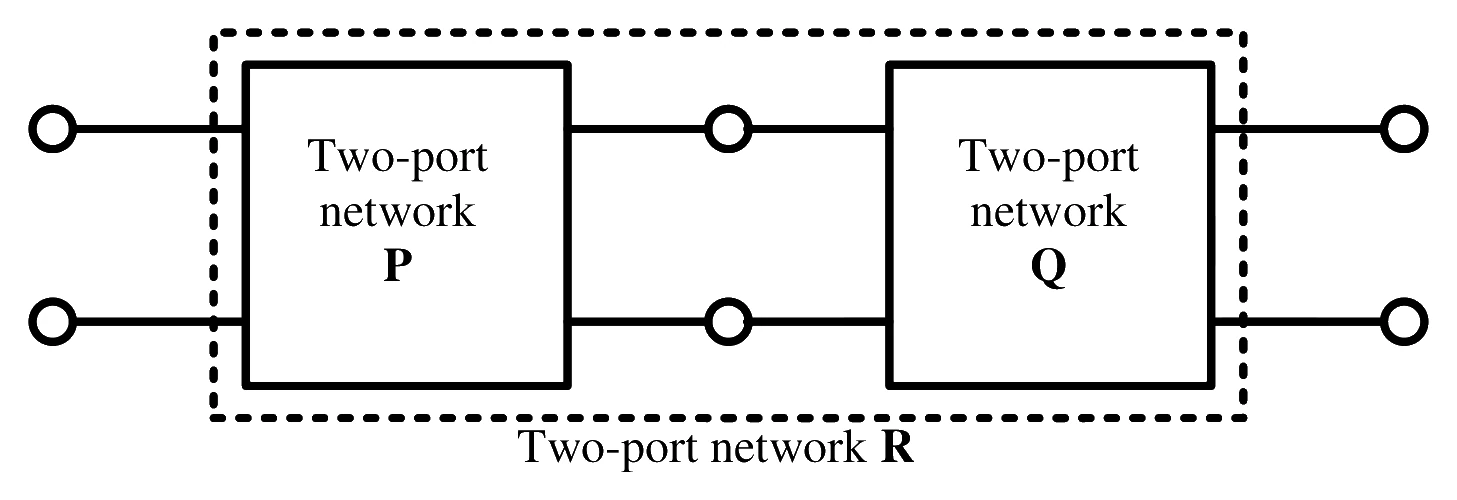

Two passive two-port networks P and Q are connected as shown in the figure. The impedance matrix of network P is ZP=[406080100] ΩZ_P = \begin{bmatrix} 40 & 60 \\ 80 & 100 \end{bmatrix}\ \Omega. The admittance matrix of network Q is YQ=[5−2.5−2.51]Y_Q = \begin{bmatrix} 5 & -2.5 \\ -2.5 & 1 \end{bmatrix} S. Let the ABCD matrix of the two-port network R in the figure be [αβγδ]\begin{bmatrix} \alpha & \beta \\ \gamma & \delta \end{bmatrix}. The value of β\beta in Ω\Omega is ______ (rounded off to 2 decimal places).

Source figure

Answer (official key): -19.9 to -19.7

Solution

From ZPZ_P: A=4080=0.5A = \frac{40}{80} = 0.5 and B=ΔZz21=4000−480080=−10 ΩB = \frac{\Delta Z}{z_{21}} = \frac{4000 - 4800}{80} = -10\ \Omega (with D=1.25D = 1.25).

From YQY_Q: BQ=−1y21=0.4 ΩB_Q = -\frac{1}{y_{21}} = 0.4\ \Omega and DQ=−y11y21=2D_Q = -\frac{y_{11}}{y_{21}} = 2.

Cascading: β=APBQ+BPDQ=0.5(0.4)+(−10)(2)=−19.80 Ω\beta = A_PB_Q + B_PD_Q = 0.5(0.4) + (-10)(2) = -19.80\ \Omega.

Q49 · Electric Circuits · Numerical · 2 marks

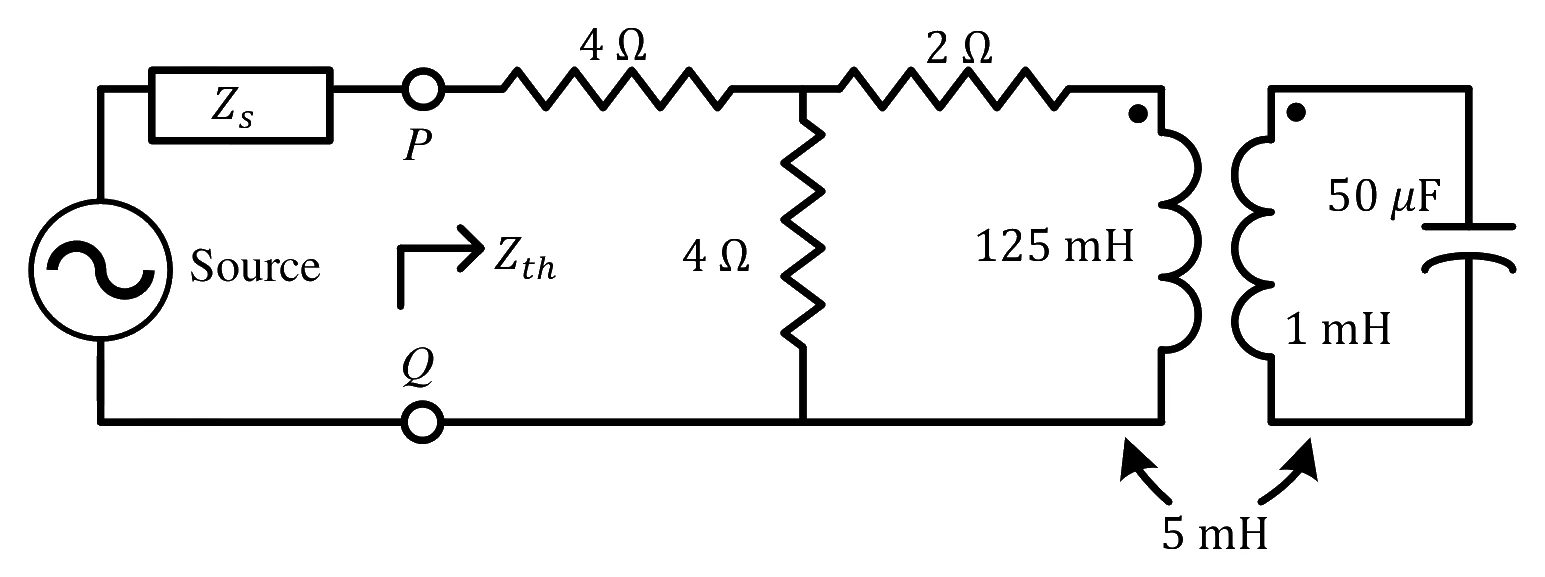

For the circuit shown in the figure, the source frequency is 5000 rad/sec. The mutual inductance between the magnetically coupled inductors is 5 mH with their self inductances being 125 mH and 1 mH. The Thevenin's impedance, ZthZ_{th}, between the terminals P and Q in Ω\Omega is ______ (rounded off to 2 decimal places).

Source figure

Answer (official key): 5.32 to 5.34

Solution

At ω=5000\omega = 5000: XL1=625 ΩX_{L1} = 625\ \Omega, XL2=5 ΩX_{L2} = 5\ \Omega, XC=4 ΩX_C = 4\ \Omega. The reflected impedance from the secondary cancels part of the primary reactance, and the Thevenin impedance seen from P–Q works out to about 5.33 Ω5.33\ \Omega. Therefore, the answer is 5.33 (official range 5.32 to 5.34).

The other 60 questions are solved in your report when you take GATE 2024 EE as a 3-hour test.

Take GATE 2024 EE as a test

Official answer key
