All 65 questions of GATE 2020 ME (Set 2)

While I agree_____his proposal this time, I do not often agree_____him.

The recent measures to improve the output would_____the level of production to our satisfaction.

Select the word that fits the analogy:

White: Whitening : : Light: _____

In one of the greatest innings ever seen in 142 years of Test history, Ben Stokes upped the tempo in a five-and-a-half hour long stay of 219 balls including 11 fours and 8 sixes that saw him finish on a 135 not out as England squared the five-match series.

Based on their connotations in the given passage, which one of the following meanings DOES NOT match?

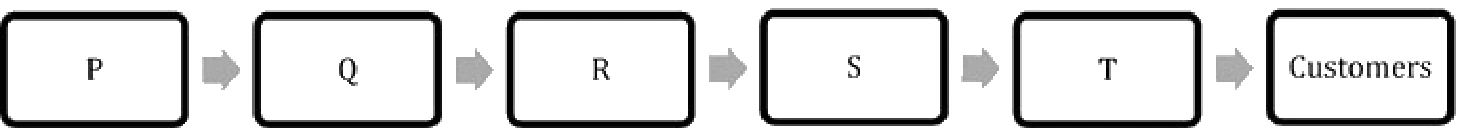

There are five levels {P, Q, R, S, T} in a linear supply chain before a product reaches customers, as shown in the figure.

At each of the five levels, the price of the product is increased by $25\%$. If the product is produced at level P at the cost of Rs. 120 per unit, what is the price paid (in rupees) by the customers?

Climate change and resilience deal with two aspects – reduction of sources of non-renewable energy resources and reducing vulnerability of climate change aspects. The terms ‘mitigation’ and ‘adaptation’ are used to refer to these aspects, respectively.

Which of the following assertions is best supported by the above information?

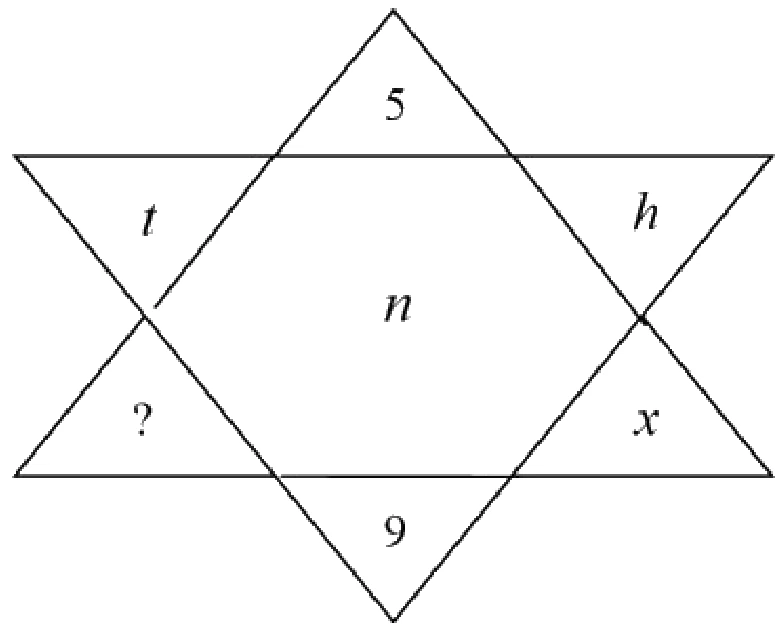

Find the missing element in the following figure.

It was estimated that 52 men can complete a strip in a newly constructed highway connecting cities P and Q in 10 days. Due to an emergency, 12 men were sent to another project. How many number of days, more than the original estimate, will be required to complete the strip?

An engineer measures THREE quantities X, Y and Z in an experiment. She finds that they follow a relationship that is represented in the figure below: (the product of X and Y linearly varies with Z)

Then, which of the following statements is FALSE?

The two pie-charts given below show the data of total students and only girls registered in different streams in a university. If the total number of students registered in the university is 5000, and the total number of the registered girls is 1500; then, the ratio of boys enrolled in Arts to the girls enrolled in Management is _____.

The sum of two normally distributed random variables X and Y is

A matrix $P$ is decomposed into its symmetric part $S$ and skew symmetric part $V$.

If

$S=\begin{pmatrix}-4&4&2\\4&3&7/2\\2&7/2&2\end{pmatrix},\quad V=\begin{pmatrix}0&-2&3\\2&0&7/2\\-3&-7/2&0\end{pmatrix},$

then matrix $P$ is

Let $I=\int_{x=0}^{1}\int_{y=0}^{x^2}xy^2\,dy\,dx$. Then, $I$ may also be expressed as

The solution of

$\frac{d^2y}{dt^2}-y=1,$

which additionally satisfies $y|_{t=0}=\left.\frac{dy}{dt}\right|_{t=0}=0$ in the Laplace $s$-domain is

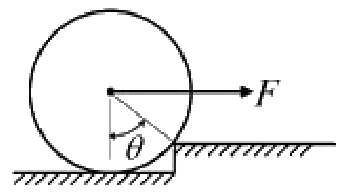

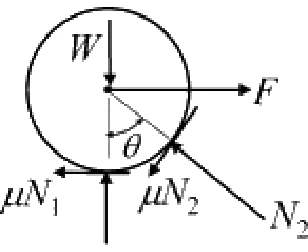

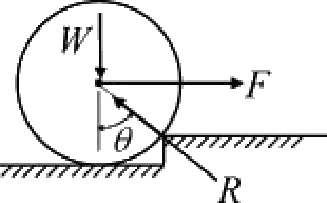

An attempt is made to pull a roller of weight $W$ over a curb (step) by applying a horizontal force $F$ as shown in the figure.

The coefficient of static friction between the roller and the ground (including the edge of the step) is $\mu$. Identify the correct free body diagram (FBD) of the roller when the roller is just about to climb over the step.

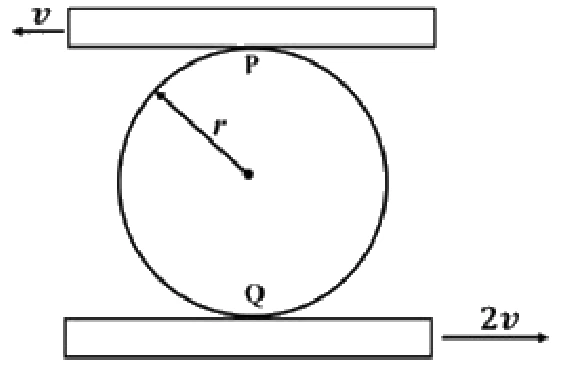

A circular disk of radius $r$ is confined to roll without slipping at P and Q as shown in the figure.

If the plates have velocities as shown, the magnitude of angular velocity of the disk is

The equation of motion of a spring-mass-damper system is given by

$\frac{d^2x}{dt^2}+3\frac{dx}{dt}+9x=10\sin(5t)$

The damping factor for the system is

The number of qualitatively distinct kinematic inversions possible for a Grashof chain with four revolute pairs is

The process, that uses a tapered horn to amplify and focus the mechanical energy for machining of glass, is

Two plates, each of $6$ mm thickness, are to be butt-welded. Consider the following processes and select the correct sequence in increasing order of size of the heat affected zone.

1. Arc welding
2. MIG welding
3. Laser beam welding
4. Submerged arc welding

Which one of the following statements about a phase diagram is INCORRECT?

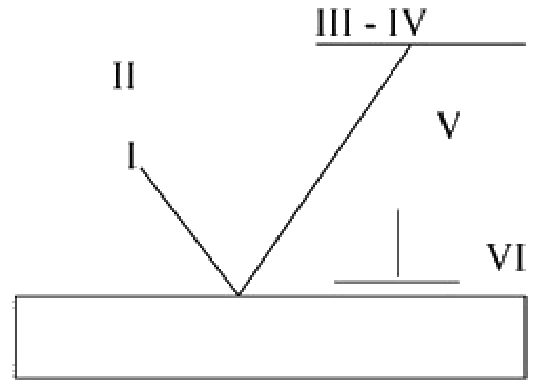

The figure below shows a symbolic representation of the surface texture in a perpendicular lay orientation with indicative values (I through VI) marking the various specifications whose definitions are listed below.

P: Maximum Waviness Height (mm); Q: Maximum Roughness Height (mm);

R: Minimum Roughness Height (mm); S: Maximum Waviness Width (mm);

T: Maximum Roughness Width (mm); U: Roughness Width Cutoff (mm).

The correct match between the specifications and the symbols (I to VI) is

In Materials Requirement Planning, if the inventory holding cost is very high and the setup cost is zero, which one of the following lot sizing approaches should be used?

Which of the following conditions is used to determine the stable equilibrium of all partially submerged floating bodies?

In the space above the mercury column in a barometer tube, the gauge pressure of the vapour is

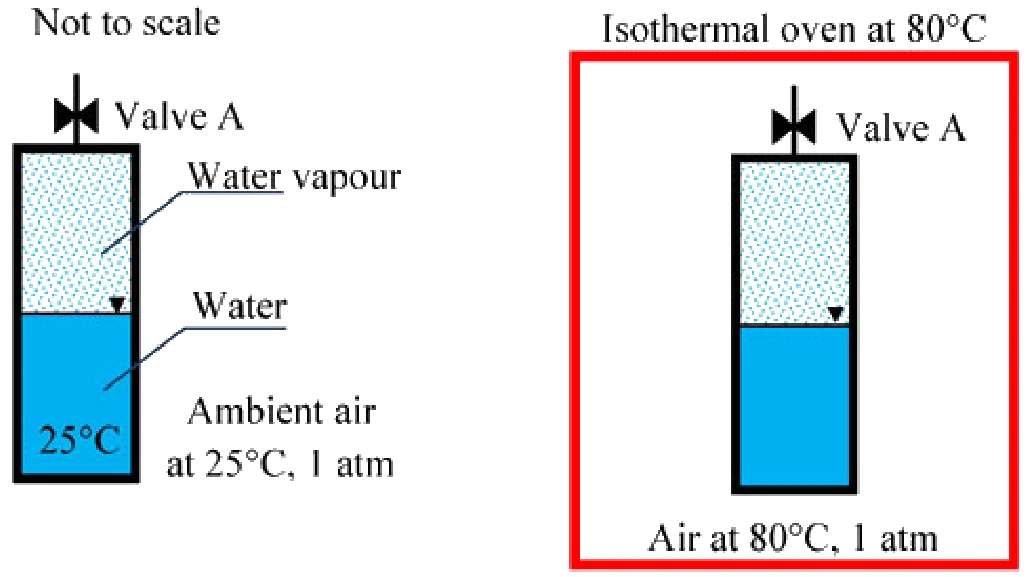

A closed vessel contains pure water, in thermal equilibrium with its vapour at $25^\circ\mathrm{C}$ (Stage #1), as shown.

The vessel in this stage is then kept inside an isothermal oven which is having an atmosphere of hot air maintained at $80^\circ\mathrm{C}$. The vessel exchanges heat with the oven atmosphere and attains a new thermal equilibrium (Stage #2). If the Valve A is now opened inside the oven, what will happen immediately after opening the valve?

For an air-standard Diesel cycle,

The values of enthalpies at the stator inlet and rotor outlet of a hydraulic turbomachine stage are $h_1$ and $h_3$ respectively. The enthalpy at the stator outlet (or rotor inlet) is $h_2$. The condition $(h_2-h_1)=(h_3-h_2)$ indicates that the degree of reaction of this stage is

Let $\mathbf{I}$ be a $100$ dimensional identity matrix and $\mathbf{E}$ be the set of distinct (no value appears more than once in $\mathbf{E}$) real eigenvalues. The number of elements in $\mathbf{E}$ is _______________.

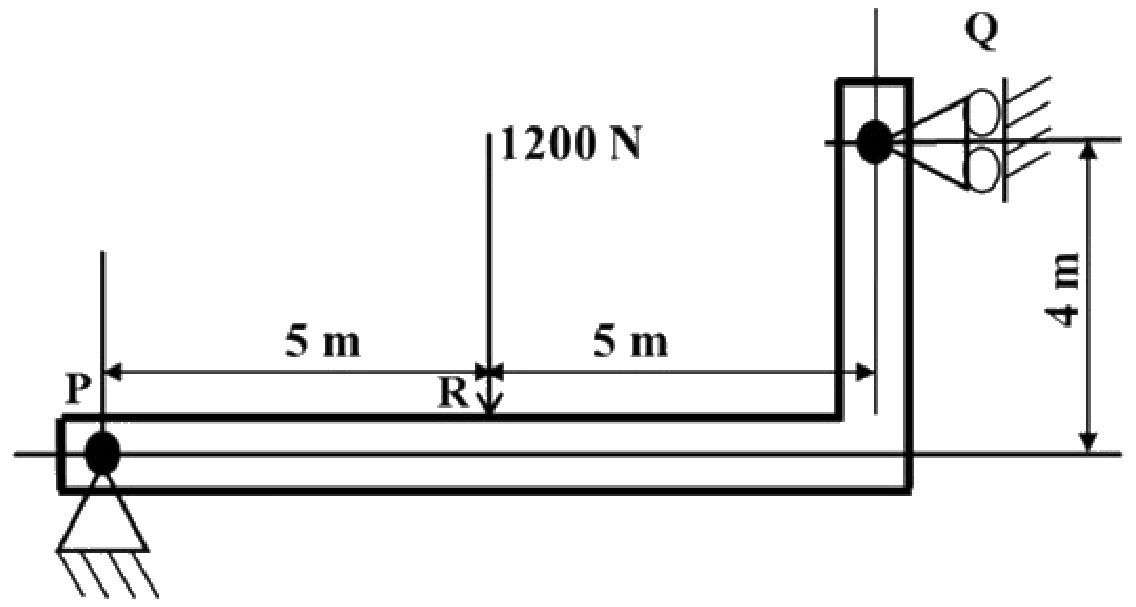

A beam of negligible mass is hinged at support P and has a roller support Q as shown in the figure.

A point load of $1200$ N is applied at point R. The magnitude of the reaction force at support Q is ______ N.

A machine member is subjected to fluctuating stress $\sigma=\sigma_0\cos(8\pi t)$. The endurance limit of the material is $350$ MPa. If the factor of safety used in the design is $3.5$ then the maximum allowable value of $\sigma_0$ is _______________ MPa (round off to 2 decimal places).

A bolt head has to be made at the end of a rod of diameter $d=12$ mm by localized forging (upsetting) operation. The length of the unsupported portion of the rod is $40$ mm. To avoid buckling of the rod, a closed forging operation has to be performed with a maximum die diameter of ________mm.

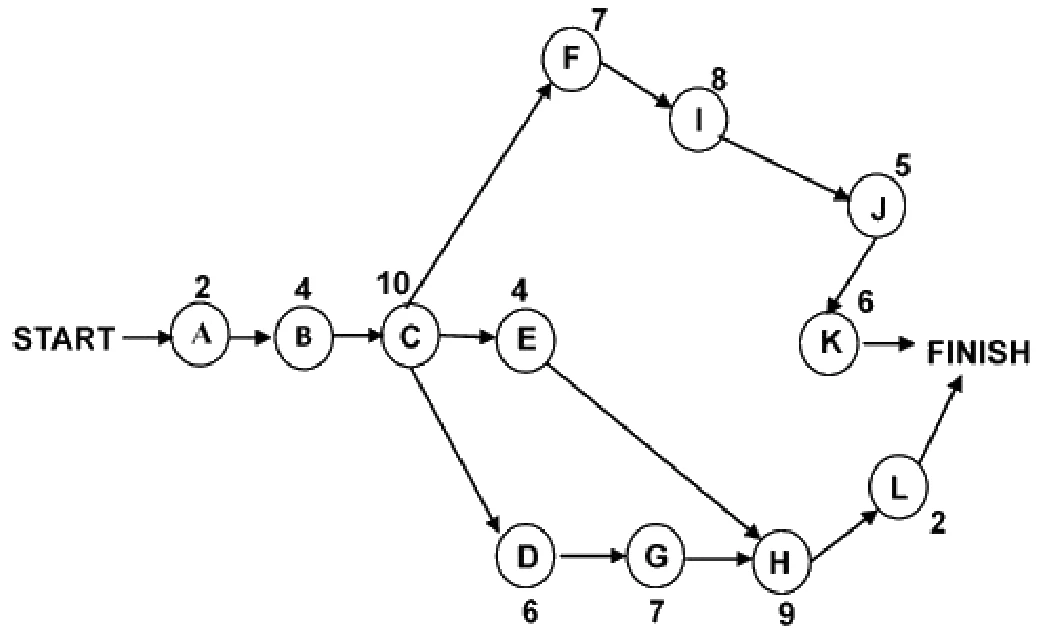

Consider the following network of activities, with each activity named A–L, illustrated in the nodes of the network.

The number of hours required for each activity is shown alongside the nodes. The slack on the activity L, is _______hours.

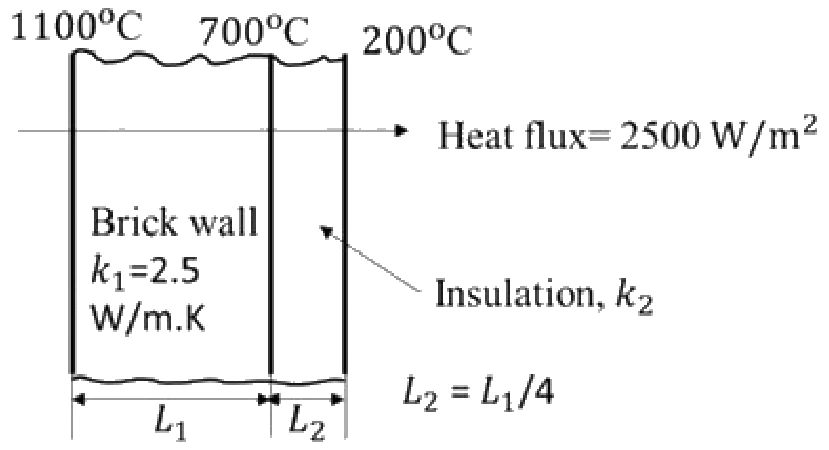

In a furnace, the inner and outer sides of the brick wall ($k_1 = 2.5$ W/m.K) are maintained at $1100^\circ\mathrm{C}$ and $700^\circ\mathrm{C}$, respectively as shown in figure.

The brick wall is covered by an insulating material of thermal conductivity $k_2$. The thickness of the insulation is $1/4^{\text{th}}$ of the thickness of the brick wall. The outer surface of the insulation is at $200^\circ\mathrm{C}$. The heat flux through the composite walls is $2500$ W/m$^2$.

The value of $k_2$ is _____ W/m.K (round off to one decimal place).

If a reversed Carnot cycle operates between the temperature limits of $27^\circ\mathrm{C}$ and $-3^\circ\mathrm{C}$, then the ratio of the COP of a refrigerator to that of a heat pump (COP of refrigerator / COP of heat pump) based on the cycle is ______________ (round off to 2 decimal places).

The directional derivative of $f(x,y,z)=xyz$ at point $(-1,1,3)$ in the direction of vector $\hat{i}-2\hat{j}+2\hat{k}$ is

The function $f(z)$ of complex variable $z=x+iy$, where $i=\sqrt{-1}$, is given as $f(z)=(x^3-3xy^2)+iv(x,y)$. For this function to be analytic, $v(x,y)$ should be

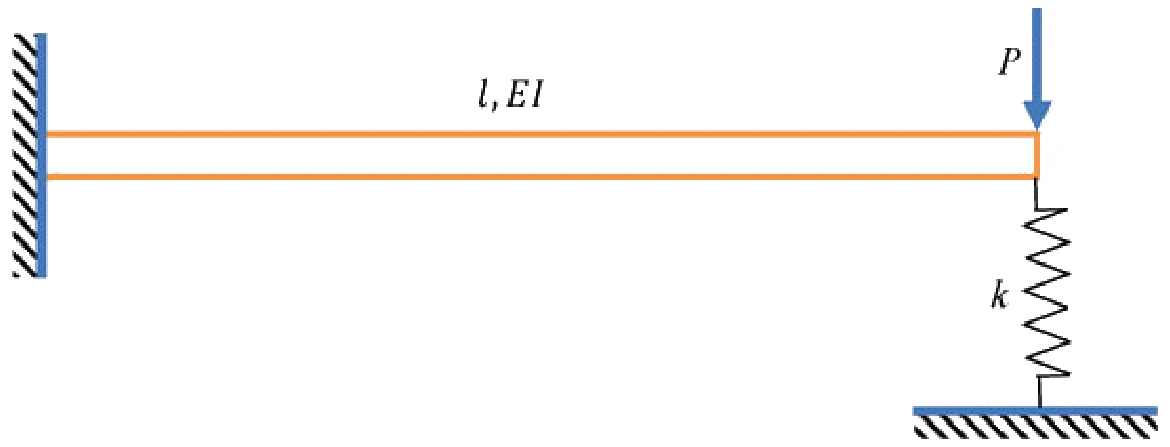

A cantilever of length $l$, and flexural rigidity $EI$, stiffened by a spring of stiffness $k$, is loaded by a transverse force $P$, as shown.

The transverse deflection under the load is

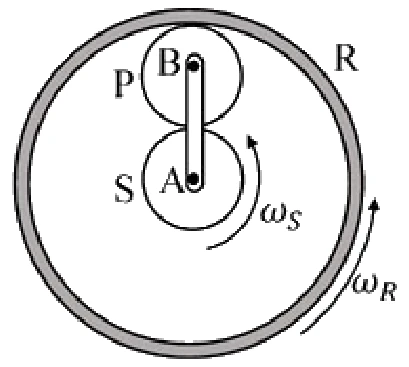

The sun (S) and the planet (P) of an epicyclic gear train shown in the figure have identical number of teeth.

If the sun (S) and the outer ring (R) gears are rotated in the same direction with angular speed $\omega_S$ and $\omega_R$, respectively, then the angular speed of the arm AB is

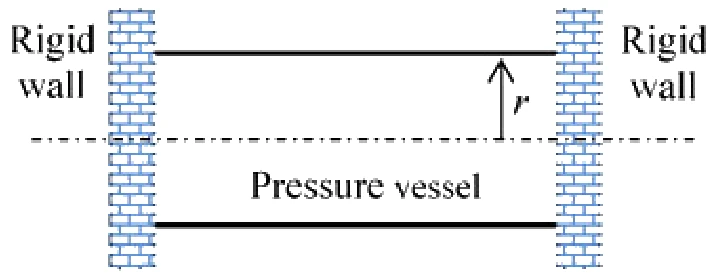

A thin-walled cylinder of radius $r$ and thickness $t$ is open at both ends, and fits snugly between two rigid walls under ambient conditions, as shown in the figure.

The material of the cylinder has Young’s modulus $E$, Poisson’s ratio $\nu$ and coefficient of thermal expansion $\alpha$. What is the minimum rise in temperature $\Delta T$ of the cylinder (assume uniform cylinder temperature with no buckling of the cylinder) required to prevent gas leakage if the cylinder has to store the gas at an internal pressure of $p$ above the atmosphere?

A helical spring has spring constant $k$. If the wire diameter, spring diameter and the number of coils are all doubled then the spring constant of the new spring becomes

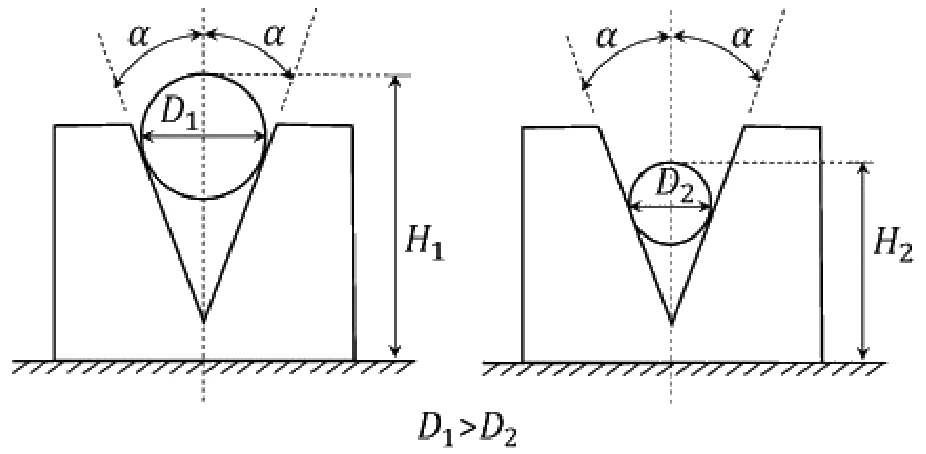

Two rollers of diameters $D_1$ (in mm) and $D_2$ (in mm) are used to measure the internal taper angle in the V-groove of a machined component. The heights $H_1$ (in mm) and $H_2$ (in mm) are measured by using a height gauge after inserting the rollers into the same V-groove as shown in the figure.

Which one of the following is the correct relationship to evaluate the angle $\alpha$ as shown in the figure?

The forecast for the monthly demand of a product is given in the table below.

The forecast is made by using the exponential smoothing method. The exponential smoothing coefficient used in forecasting the demand is

One kg of air in a closed system undergoes an irreversible process from an initial state of $p_1=1$ bar (absolute) and $T_1=27^\circ\mathrm{C}$, to a final state of $p_2=3$ bar (absolute) and $T_2=127^\circ\mathrm{C}$. If the gas constant of air is $287$ J/kg.K and the ratio of the specific heats $\gamma=1.4$, then the change in the specific entropy (in J/kg.K) of the air in the process is

For the integral $\int_0^{\pi/2}(8+4\cos x)\,dx$, the absolute percentage error in numerical evaluation with the Trapezoidal rule, using only the end points, is __________ (round off to one decimal place).

A fair coin is tossed $20$ times. The probability that ‘head’ will appear exactly $4$ times in the first ten tosses, and ‘tail’ will appear exactly $4$ times in the next ten tosses is ______________ (round off to 3 decimal places).

A hollow spherical ball of radius $20$ cm floats in still water, with half of its volume submerged. Taking the density of water as $1000$ kg/m$^3$, and the acceleration due to gravity as $10$ m/s$^2$, the natural frequency of small oscillations of the ball, normal to the water surface is ____________ radians/s (round off to 2 decimal places).

Uniaxial compression test data for a solid metal bar of length $1$ m is shown in the figure.

The bar material has a linear elastic response from O to P followed by a nonlinear response. The point P represents the yield point of the material. The rod is pinned at both the ends. The minimum diameter of the bar so that it does not buckle under axial loading before reaching the yield point is ________ mm (round off to one decimal place).

The turning moment diagram of a flywheel fitted to a fictitious engine is shown in the figure.

The mean turning moment is $2000$ Nm. The average engine speed is $1000$ rpm. For fluctuation in the speed to be within $\pm2\%$ of the average speed, the mass moment of inertia of the flywheel is ______________ kg.m$^2$.

A rigid block of mass $m_1=10$ kg having velocity $v_0=2$ m/s strikes a stationary block of mass $m_2=30$ kg after traveling $1$ m along a frictionless horizontal surface as shown in the figure.

The two masses stick together and jointly move by a distance of $0.25$ m further along the same frictionless surface, before they touch the mass-less buffer that is connected to the rigid vertical wall by means of a linear spring having a spring constant $k=10^5$ N/m. The maximum deflection of the spring is ______________ cm (round off to 2 decimal places).

A steel spur pinion has a module ($m$) of $1.25$ mm, $20$ teeth and $20^\circ$ pressure angle. The pinion rotates at $1200$ rpm and transmits power to a $60$ teeth gear. The face width ($F$) is $50$ mm, Lewis form factor $Y=0.322$ and a dynamic factor $K_v=1.26$. The bending stress ($\sigma$) induced in a tooth can be calculated by using the Lewis formula given below.

If the maximum bending stress experienced by the pinion is $400$ MPa, the power transmitted is _________ kW (round off to one decimal place).

Lewis formula: $\sigma=\dfrac{K_vW^t}{FmY}$, where $W^t$ is the tangential load acting on the pinion.

A mould cavity of $1200$ cm$^3$ volume has to be filled through a sprue of $10$ cm length feeding a horizontal runner. Cross-sectional area at the base of the sprue is $2$ cm$^2$. Consider acceleration due to gravity as $9.81$ m/s$^2$. Neglecting frictional losses due to molten metal flow, the time taken to fill the mould cavity is __________ seconds (round off to 2 decimal places).

A cylindrical bar with $200$ mm diameter is being turned with a tool having geometry $0^\circ$ - $9^\circ$ - $7^\circ$ - $8^\circ$ - $15^\circ$ - $30^\circ$ - $0.05$ inch (Coordinate system, ASA) resulting in a cutting force $F_{c1}$. If the tool geometry is changed to $0^\circ$ - $9^\circ$ - $7^\circ$ - $8^\circ$ - $15^\circ$ - $0^\circ$ - $0.05$ inch (Coordinate system, ASA) and all other parameters remain unchanged, the cutting force changes to $F_{c2}$. Specific cutting energy (in J/mm$^3$) is $U_c=U_0(t_1)^{-0.4}$, where $U_0$ is the specific energy coefficient, and $t_1$ is the uncut thickness in mm. The value of percentage change in cutting force $F_{c2}$, i.e. $\left(\dfrac{F_{c2}-F_{c1}}{F_{c1}}\right)\times100$, is ____________ (round off to one decimal place).

There are two identical shaping machines S$_1$ and S$_2$. In machine S$_2$, the width of the workpiece is increased by $10\%$ and the feed is decreased by $10\%$, with respect to that of S$_1$. If all other conditions remain the same then the ratio of total time per pass in S$_1$ and S$_2$ will be ____________ (round off to one decimal place).

Bars of $250$ mm length and $25$ mm diameter are to be turned on a lathe with a feed of $0.2$ mm/rev. Each regrinding of the tool costs Rs. $20$. The time required for each tool change is $1$ min. Tool life equation is given as $VT^{0.2}=24$ (where cutting speed $V$ is in m/min and tool life $T$ is in min). The optimum tool cost per piece for maximum production rate is Rs. ____________ (round off to 2 decimal places).

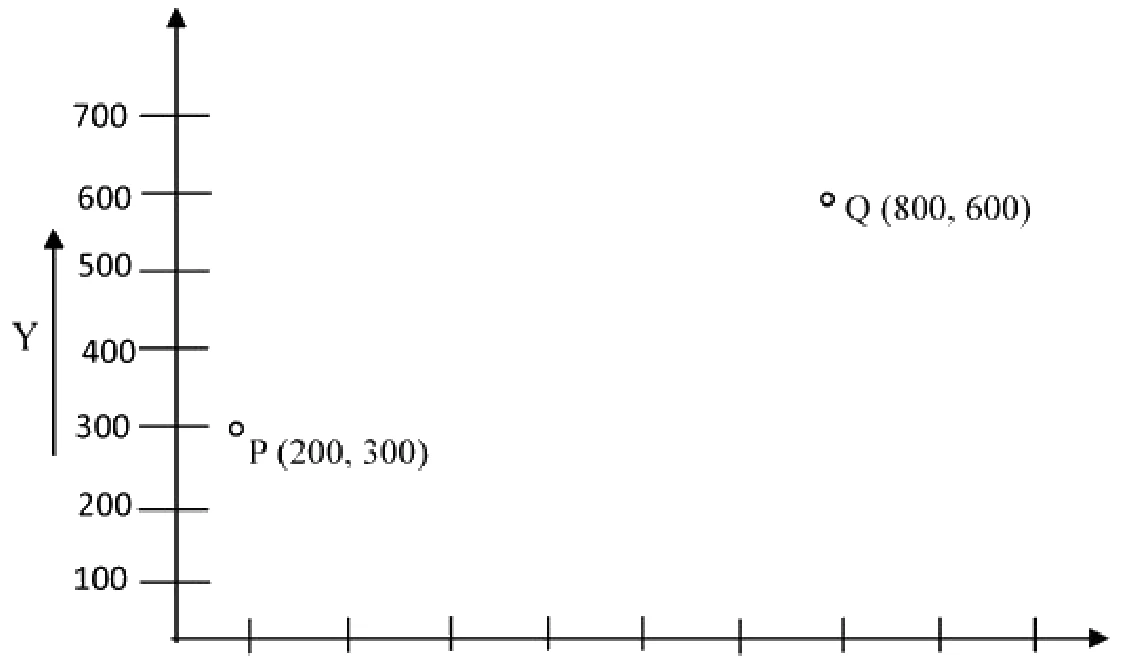

A point ‘P’ on a CNC controlled XY-stage is moved to another point ‘Q’ using the coordinate system shown in the figure below and rapid positioning command (G00).

A pair of stepping motors with maximum speed of $800$ rpm, controlling both the X and Y motion of the stage, are directly coupled to a pair of lead screws, each with a uniform pitch of $0.5$ mm. The time needed to position the point ‘P’ to the point ‘Q’ is ____________ minutes (round off to 2 decimal places).

For a single item inventory system, the demand is continuous, which is $10000$ per year. The replenishment is instantaneous and backorders ($S$ units) per cycle are allowed as shown in the figure.

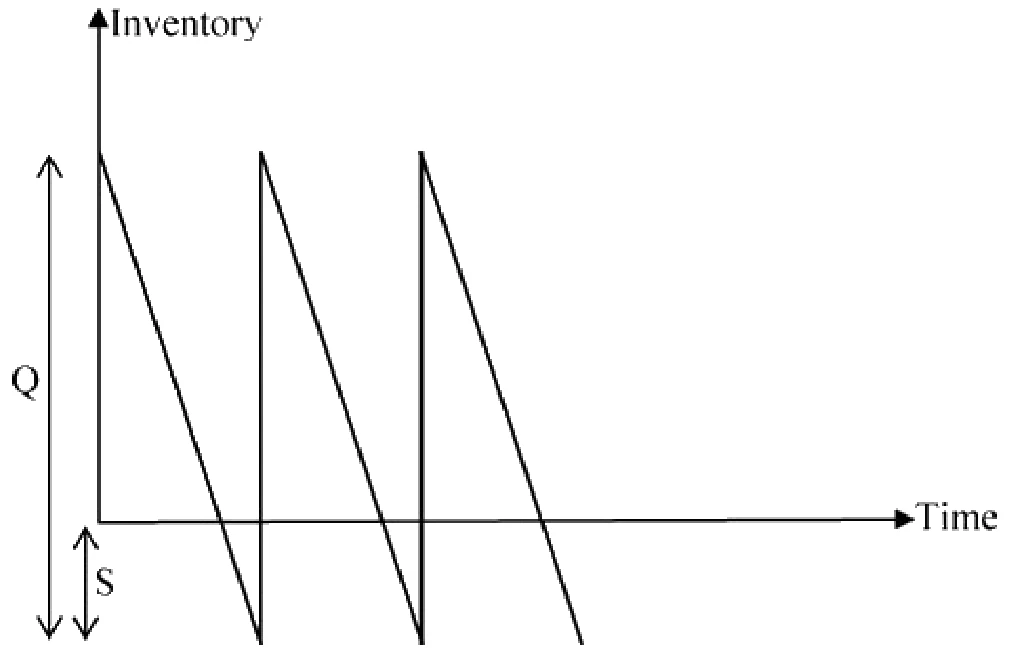

As soon as the quantity ($Q$ units) ordered from the supplier is received, the backordered quantity is issued to the customers. The ordering cost is Rs. $300$ per order. The carrying cost is Rs. $4$ per unit per year. The cost of backordering is Rs. $25$ per unit per year. Based on the total cost minimization criteria, the maximum inventory reached in the system is ______ (round off to nearest integer).

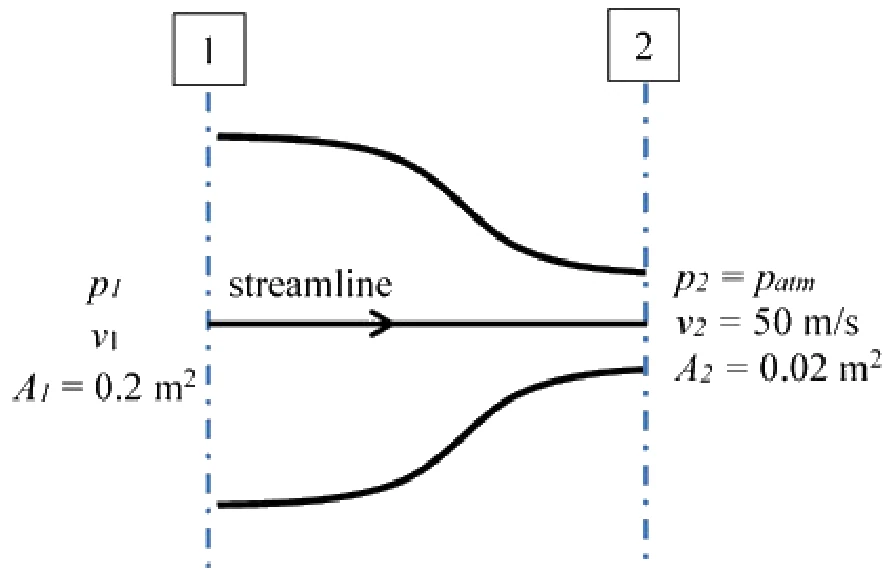

Consider a flow through a nozzle, as shown in the figure below.

The air flow is steady, incompressible and inviscid. The density of air is $1.23$ kg/m$^3$. The pressure difference, $(p_1-p_{atm})$ is ____________ kPa (round off to 2 decimal places).

Water (density $1000$ kg/m$^3$) flows through an inclined pipe of uniform diameter. The velocity, pressure and elevation at section A are $V_A=3.2$ m/s, $p_A=186$ kPa and $z_A=24.5$ m, respectively, and those at section B are $V_B=3.2$ m/s, $p_B=260$ kPa and $z_B=9.1$ m, respectively. If acceleration due to gravity is $10$ m/s$^2$ then the head lost due to friction is ______________ m (round off to one decimal place).

The spectral distribution of radiation from a black body at $T_1=3000$ K has a maximum at wavelength $\lambda_{\max}$. The body cools down to a temperature $T_2$. If the wavelength corresponding to the maximum of the spectral distribution at $T_2$ is $1.2$ times of the original wavelength $\lambda_{\max}$, then the temperature $T_2$ is ______________ K (round off to the nearest integer).

Water flows through a tube of $3$ cm internal diameter and length $20$ m. The outside surface of the tube is heated electrically so that it is subjected to uniform heat flux circumferentially and axially. The mean inlet and exit temperatures of the water are $10^\circ\mathrm{C}$ and $70^\circ\mathrm{C}$, respectively. The mass flow rate of the water is $720$ kg/h. Disregard the thermal resistance of the tube wall. The internal heat transfer coefficient is $1697$ W/m$^2$.K. Take specific heat $C_p$ of water as $4.179$ kJ/kg.K. The inner surface temperature at the exit section of the tube is ____________ $^\circ\mathrm{C}$ (round off to one decimal place).

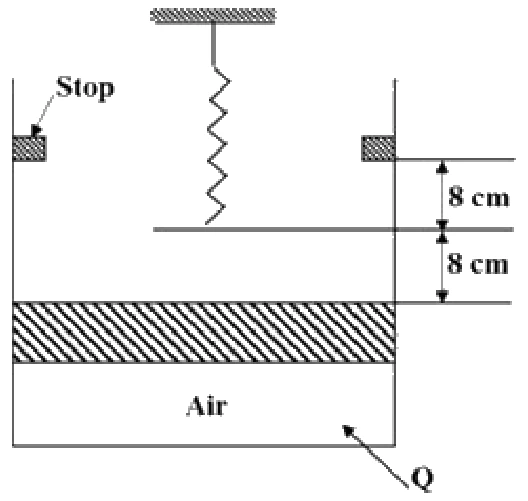

Air is contained in a frictionless piston-cylinder arrangement as shown in the figure.

The atmospheric pressure is $100$ kPa and the initial pressure of air in the cylinder is $105$ kPa. The area of piston is $300$ cm$^2$. Heat is now added and the piston moves slowly from its initial position until it reaches the stops. The spring constant of the linear spring is $12.5$ N/mm. Considering the air inside the cylinder as the system, the work interaction is _______ J (round off to the nearest integer).

Moist air at $105$ kPa, $30^\circ\mathrm{C}$ and $80\%$ relative humidity flows over a cooling coil in an insulated air-conditioning duct. Saturated air exits the duct at $100$ kPa and $15^\circ\mathrm{C}$. The saturation pressures of water at $30^\circ\mathrm{C}$ and $15^\circ\mathrm{C}$ are $4.24$ kPa and $1.7$ kPa respectively. Molecular weight of water is $18$ g/mol and that of air is $28.94$ g/mol. The mass of water condensing out from the duct is _______ g/kg of dry air (round off to the nearest integer).

In a steam power plant, superheated steam at $10$ MPa and $500^\circ\mathrm{C}$ is expanded isentropically in a turbine until it becomes a saturated vapour. It is then reheated at constant pressure to $500^\circ\mathrm{C}$. The steam is next expanded isentropically in another turbine until it reaches the condenser pressure of $20$ kPa. Relevant properties of steam are given in the following two tables. The work done by both the turbines together is _______ kJ/kg (round off to the nearest integer).

Superheated Steam Table:

Saturated Steam Table:

Keeping all other parameters identical, the Compression Ratio (CR) of an air standard diesel cycle is increased from $15$ to $21$. Take ratio of specific heats $=1.3$ and cut-off ratio of the cycle $r_c=2$.

The difference between the new and the old efficiency values, in percentage,

$(\eta_{new}|_{CR=21})-(\eta_{old}|_{CR=15})=$ __________ $\%$ (round off to one decimal place).
