All 65 questions of GATE 2020 EC

The untimely loss of life is a cause of serious global concern as thousands of people get killed _____ accidents every year while many other die _____ diseases like cardio vascular disease, cancer, etc.

He was not only accused of theft _____ of conspiracy.

Select the word that fits the analogy:

Explicit : Implicit :: Express : _____

The Canadian constitution requires that equal importance be given to English and French. Last year, Air Canada lost a lawsuit, and had to pay a six-figure fine to a French-speaking couple after they filed complaints about formal in-flight announcements in English lasting 15 seconds, as opposed to informal 5 second messages in French.

The French-speaking couple were upset at _____.

A superadditive function $f(\cdot)$ satisfies the following property

$f(x_1 + x_2) \ge f(x_1) + f(x_2)$

Which of the following functions is a superadditive function for $x > 1$?

The global financial crisis in 2008 is considered to be the most serious world-wide financial crisis, which started with the sub-prime lending crisis in USA in 2007. The sub-prime lending crisis led to the banking crisis in 2008 with the collapse of Lehman Brothers in 2008. The sub-prime lending refers to the provision of loans to those borrowers who may have difficulties in repaying loans, and it arises because of excess liquidity following the East Asian crisis.

Which one of the following sequences shows the correct precedence as per the given passage?

It is quarter past three in your watch. The angle between the hour hand and the minute hand is _______.

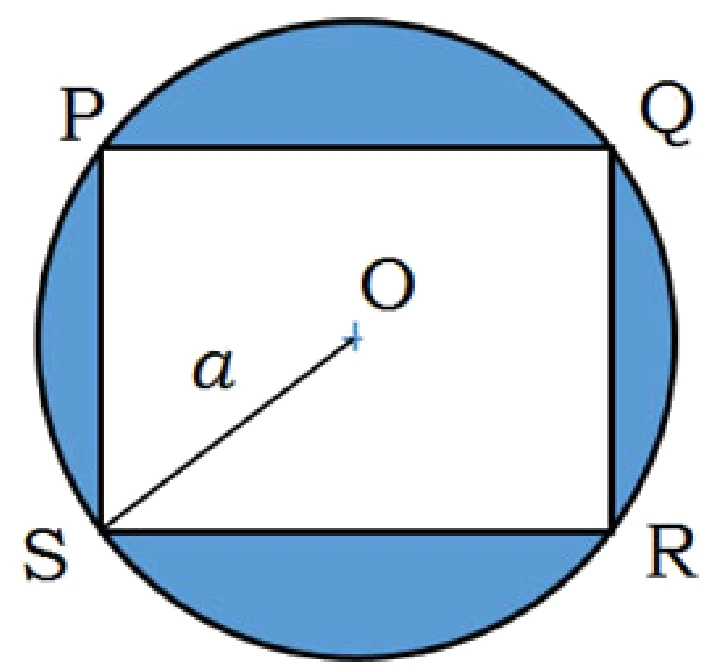

A circle with centre O is shown in the figure. A rectangle PQRS of maximum possible area is inscribed in the circle. If the radius of the circle is $a$, then the area of the shaded portion is _____.

$a, b, c$ are real numbers. The quadratic equation $ax^2 - bx + c = 0$ has equal roots, which is $\beta$, then

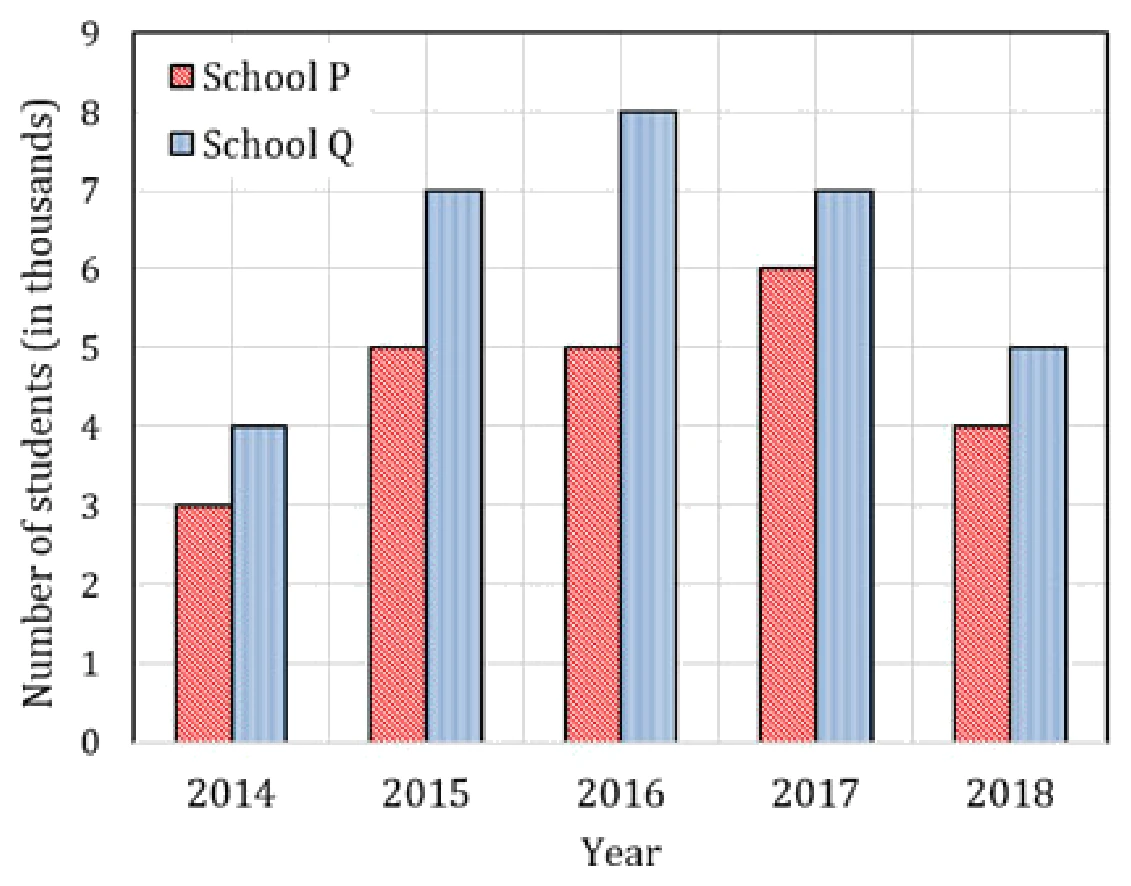

The following figure shows the data of students enrolled in 5 years (2014 to 2018) for two schools P and Q. During this period, the ratio of the average number of the students enrolled in school P to the average of the difference of the number of students enrolled in schools P and Q is _____.

If $\mathbf{v_1}, \mathbf{v_2}, \dots, \mathbf{v_6}$ are six vectors in $\mathbb{R}^4$, which one of the following statements is FALSE?

For a vector field $\vec{A}$, which one of the following is FALSE?

The partial derivative of the function

$f(x,y,z) = e^{1 - x\cos y} + xze^{-1/(1+y^2)}$

with respect to $x$ at the point $(1, 0, e)$ is

The general solution of $\dfrac{d^2y}{dx^2} - 6\dfrac{dy}{dx} + 9y = 0$ is

The output $y[n]$ of a discrete-time system for an input $x[n]$ is

$y[n] = \max_{-\infty \le k \le n}|x[k]|.$

The unit impulse response of the system is

A single crystal intrinsic semiconductor is at a temperature of 300 K with effective density of states for holes twice that of electrons. The thermal voltage is 26 mV. The intrinsic Fermi level is shifted from mid-bandgap energy level by

Consider the recombination process via bulk traps in a forward biased pn homojunction diode. The maximum recombination rate is $U_{max}$. If the electron and the hole capture cross-sections are equal, which one of the following is FALSE?

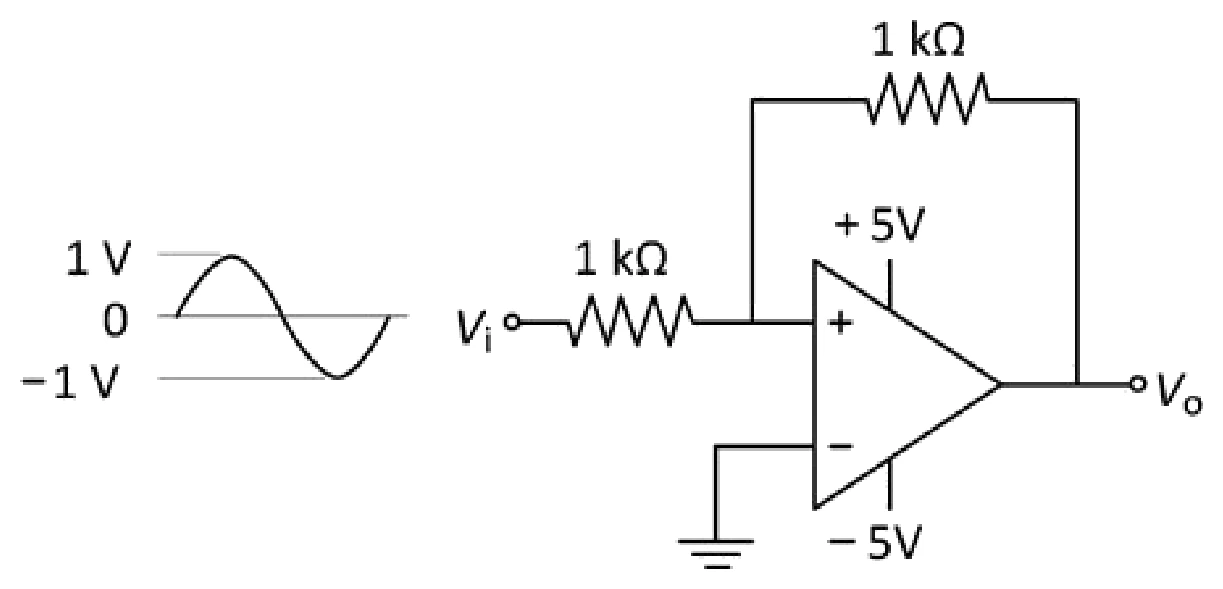

The components in the circuit shown below are ideal. If the op-amp is in positive feedback and the input voltage $V_i$ is a sine wave of amplitude 1 V, the output voltage $V_o$ is

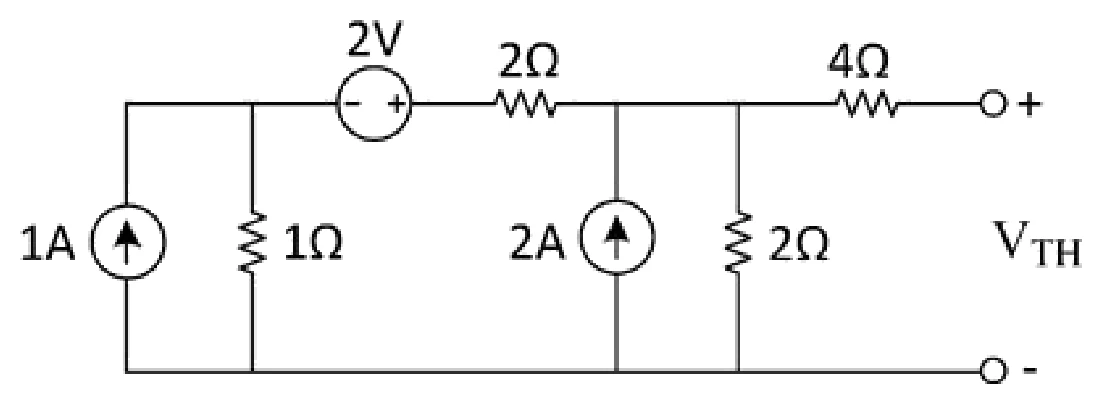

In the circuit shown below, the Thevenin voltage $V_{TH}$ is

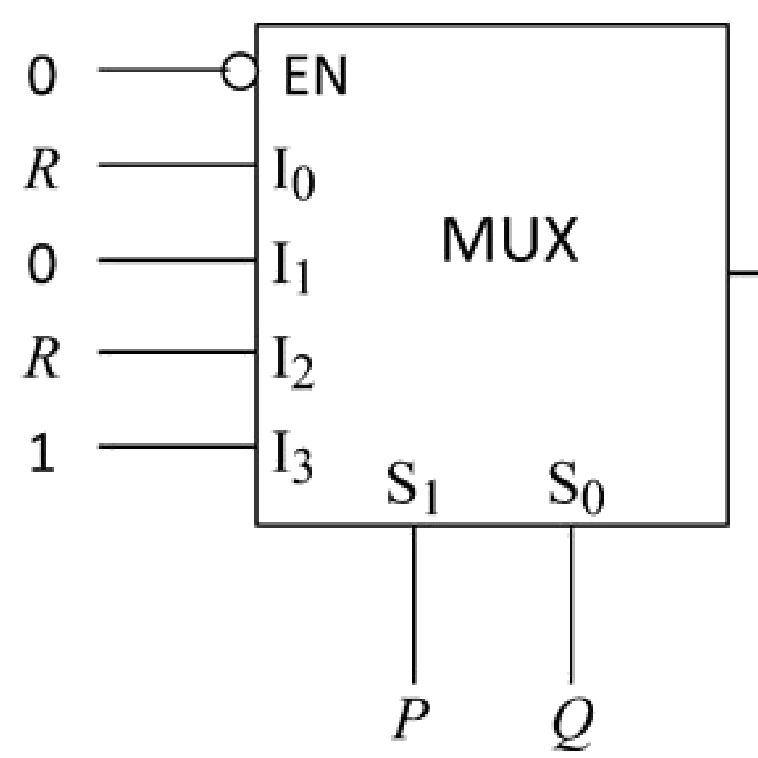

The figure below shows a multiplexer where $S_1$ and $S_0$ are the select lines, $I_0$ to $I_3$ are the input data lines, EN is the enable line, and $F(P, Q, R)$ is the output. $F$ is

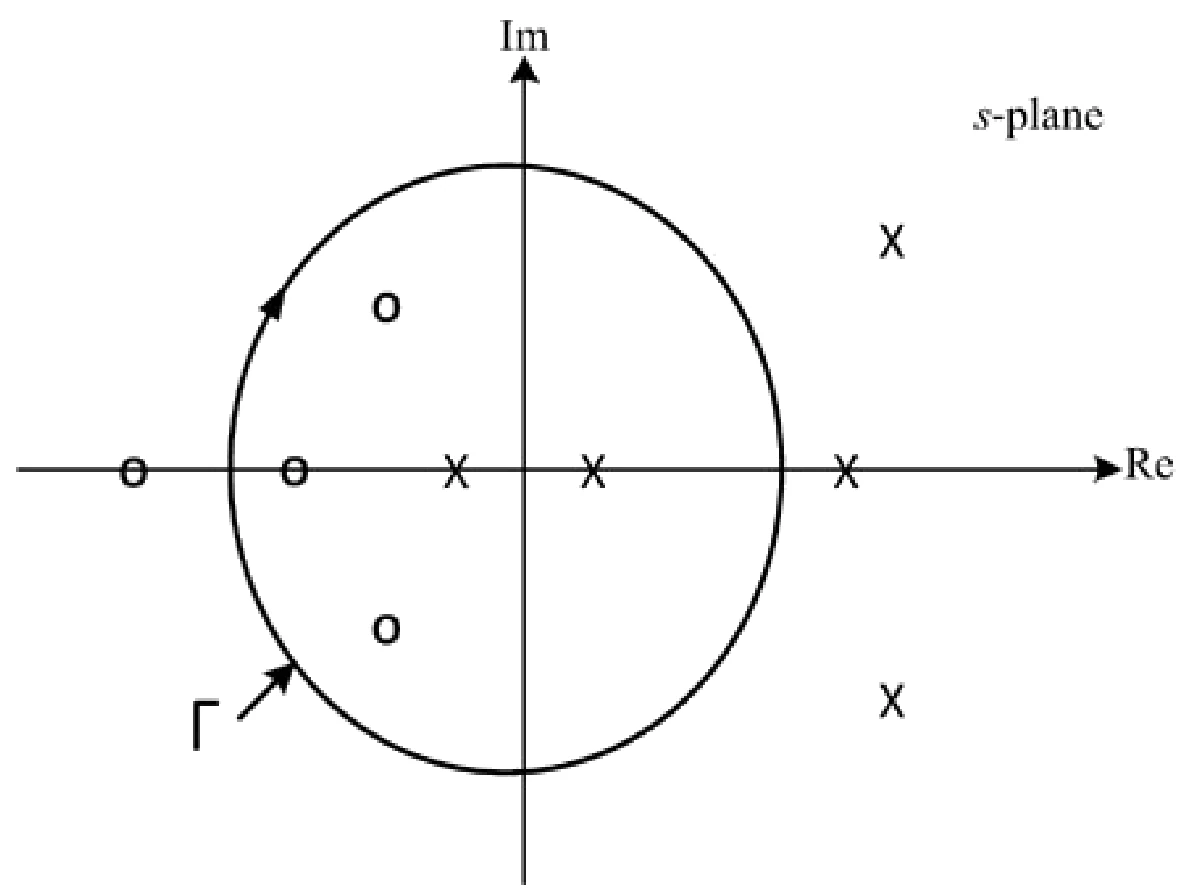

The pole-zero map of a rational function $G(s)$ is shown below. When the closed contour Γ is mapped into the $G(s)$-plane, then the mapping encircles

A digital communication system transmits a block of $N$ bits. The probability of error in decoding a bit is $\alpha$. The error event of each bit is independent of the error events of the other bits. The received block is declared erroneous if at least one of its bits is decoded wrongly. The probability that the received block is erroneous is

The impedances $Z = jX$, for all $X$ in the range $(-\infty, \infty)$, map to the Smith chart as

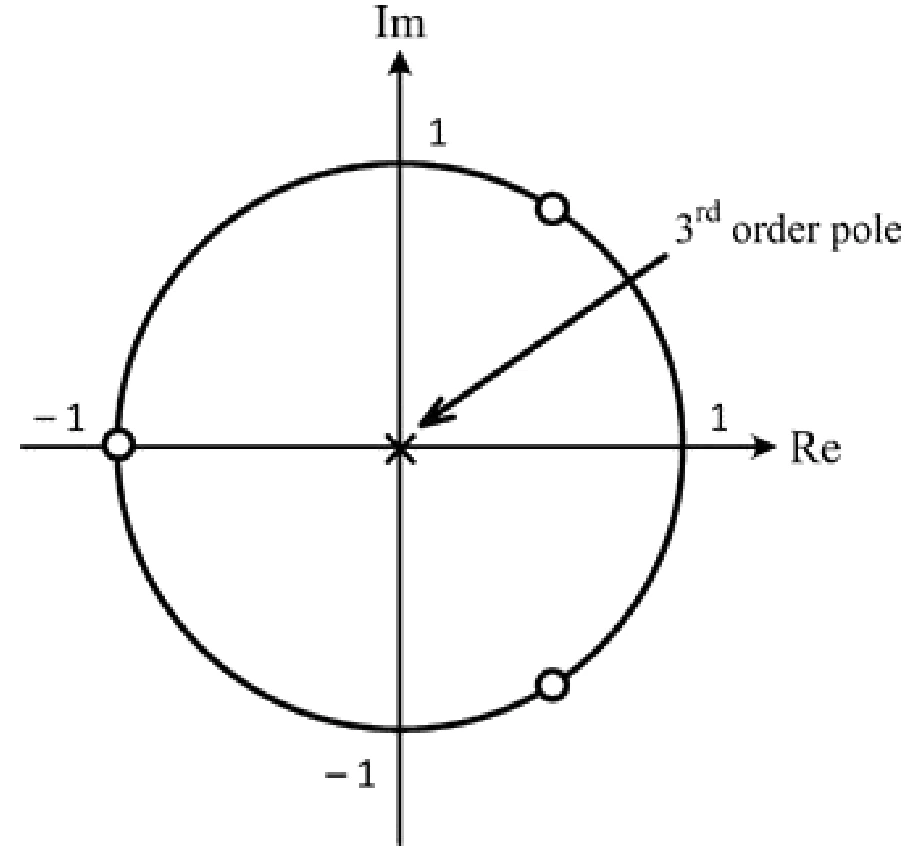

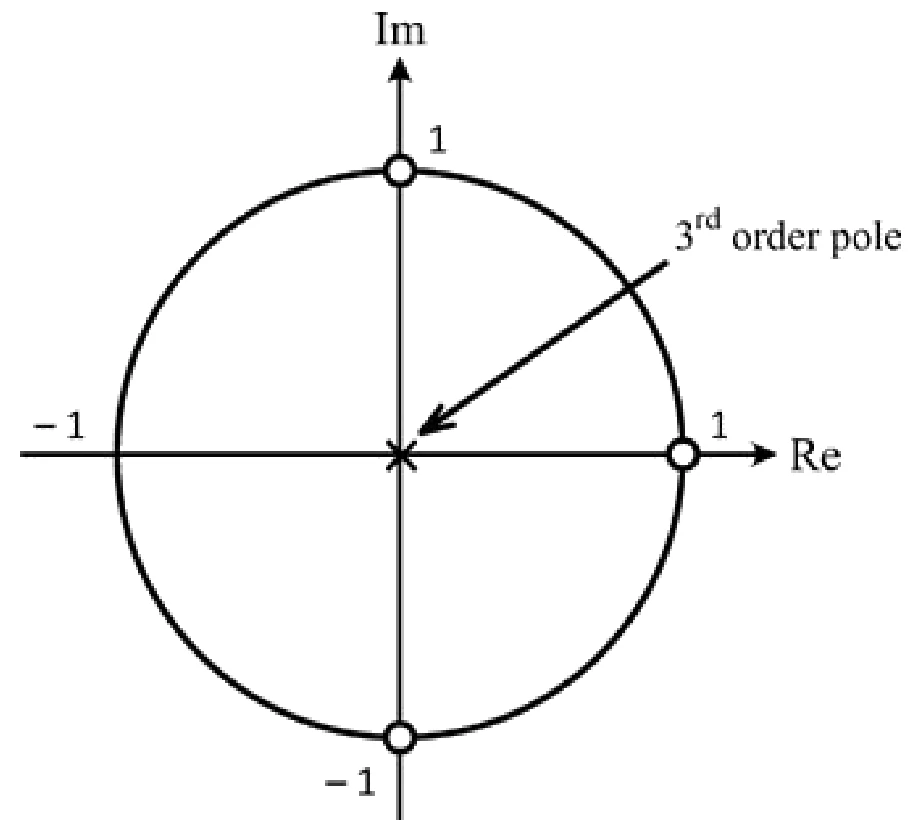

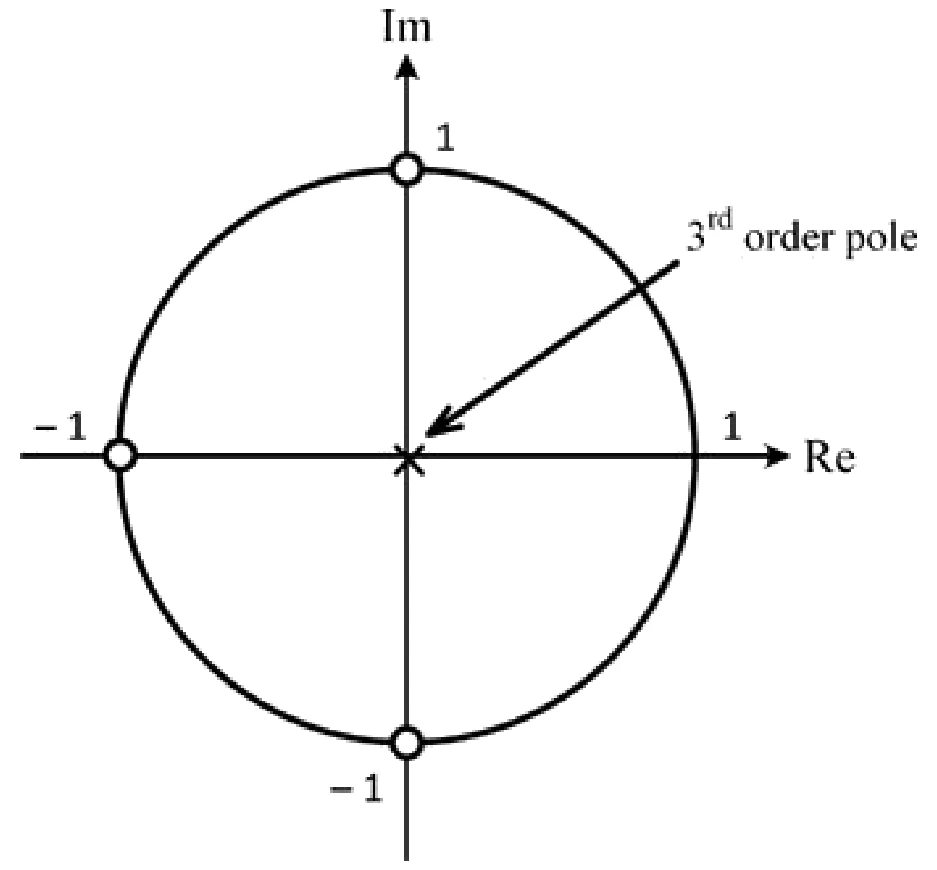

Which one of the following pole-zero plots corresponds to the transfer function of an LTI system characterized by the input-output difference equation given below?

$y[n] = \sum_{k=0}^{3}(-1)^k x[n - k]$

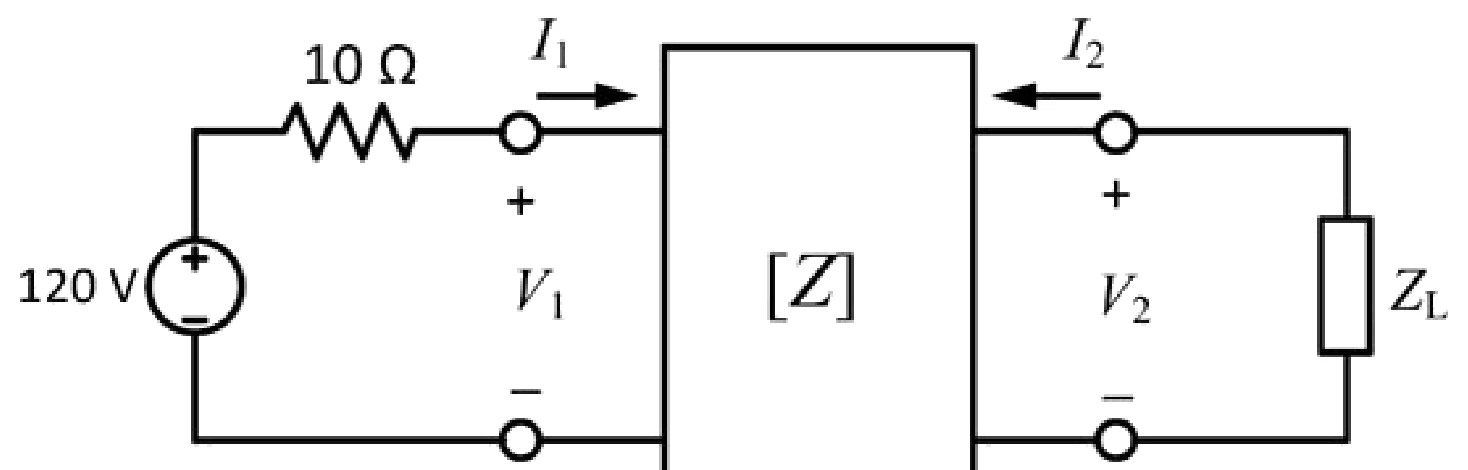

In the given circuit, the two-port network has the impedance matrix $[Z] = \begin{bmatrix} 40 & 60 \\ 60 & 120 \end{bmatrix}$. The value of $Z_L$ for which maximum power is transferred to the load is __________ Ω.

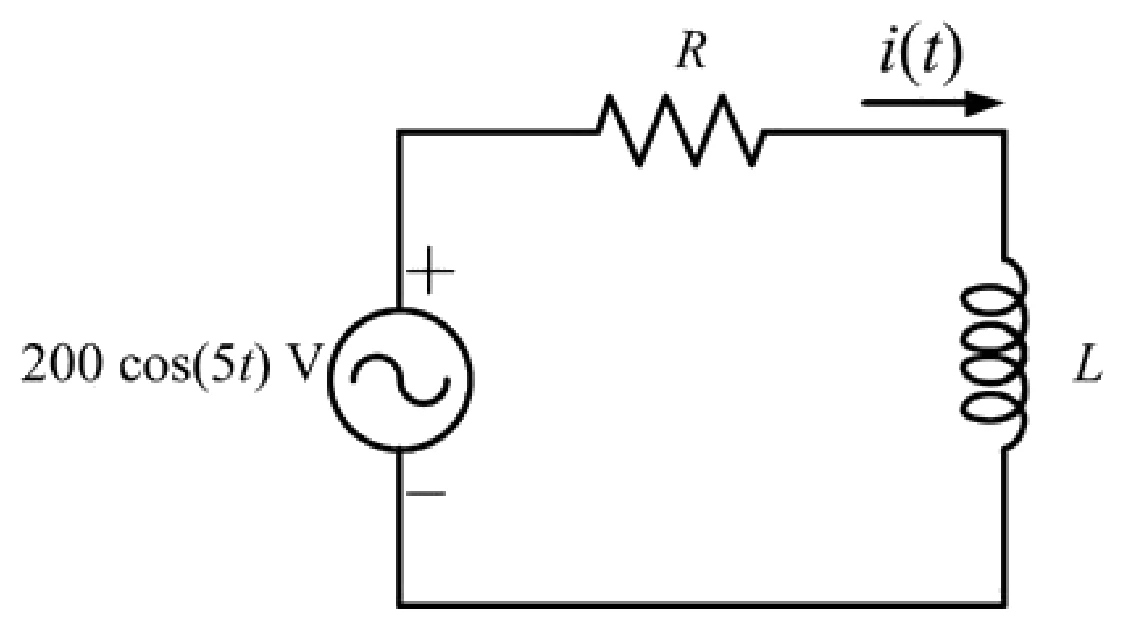

The current in the RL-circuit shown below is $i(t) = 10\cos(5t - \pi/4)$ A. The value of the inductor (rounded off to two decimal places) is ______ H.

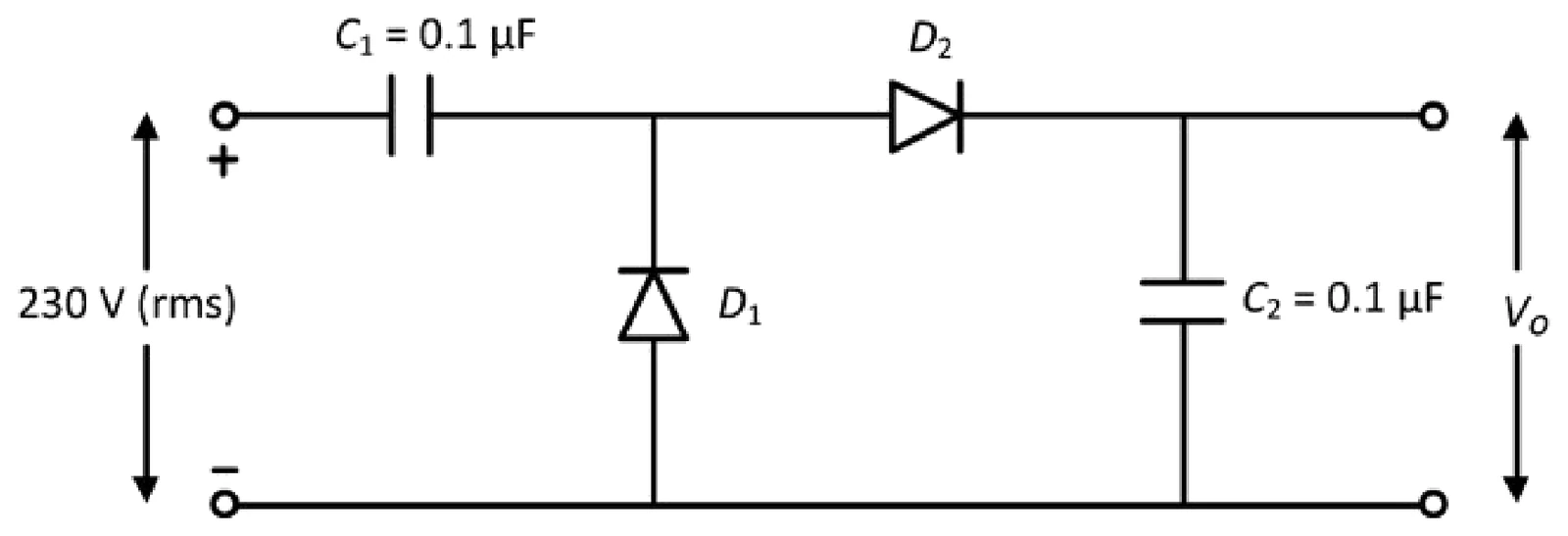

In the circuit shown below, all the components are ideal and the input voltage is sinusoidal. The magnitude of the steady-state output $V_o$ (rounded off to two decimal places) is ______ V.

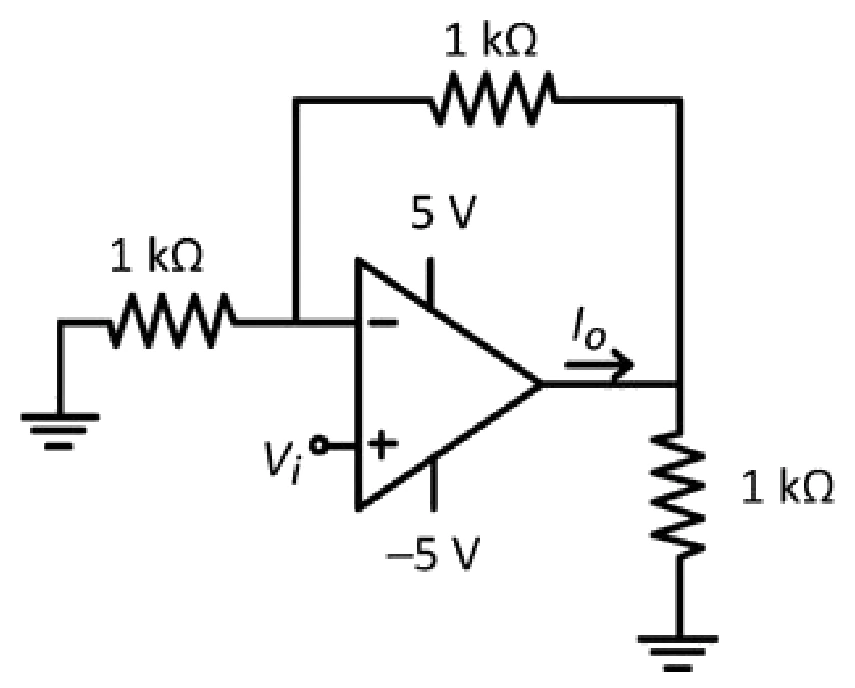

In the circuit shown below, all the components are ideal. If $V_i$ is +2 V, the current $I_o$ sourced by the op-amp is ______ mA.

In an 8085 microprocessor, the number of address lines required to access a 16 K byte memory bank is ______.

A 10-bit D/A converter is calibrated over the full range from 0 to 10 V. If the input to the D/A converter is 13A (in hex), the output (rounded off to three decimal places) is ______ V.

A transmission line of length $3\lambda/4$ and having a characteristic impedance of 50 Ω is terminated with a load of 400 Ω. The impedance (rounded off to two decimal places) seen at the input end of the transmission line is ______ Ω.

A binary random variable $X$ takes the value +2 or −2. The probability $P(X = +2) = \alpha$. The value of $\alpha$ (rounded off to one decimal place), for which the entropy of $X$ is maximum, is ______.

The loop transfer function of a negative feedback system is

$G(s)H(s) = \frac{K(s + 11)}{s(s + 2)(s + 8)}.$

The value of $K$, for which the system is marginally stable, is ______.

The random variable

$Y = \int_{-\infty}^{\infty} W(t)\phi(t)\,dt, \quad \text{where} \quad \phi(t) = \begin{cases} 1; & 5 \le t \le 7 \\ 0; & \text{otherwise} \end{cases}$

and $W(t)$ is a real white Gaussian noise process with two-sided power spectral density $S_W(f) = 3$ W/Hz, for all $f$. The variance of $Y$ is ______.

The two sides of a fair coin are labelled as 0 and 1. The coin is tossed two times independently. Let $M$ and $N$ denote the labels corresponding to the outcomes of those tosses. For a random variable $X$, defined as $X = \min(M, N)$, the expected value $E(X)$ (rounded off to two decimal places) is ______.

Consider the following system of linear equations.

$x_1 + 2x_2 = b_1;\quad 2x_1 + 4x_2 = b_2;\quad 3x_1 + 7x_2 = b_3;\quad 3x_1 + 9x_2 = b_4$

Which one of the following conditions ensures that a solution exists for the above system?

Which one of the following options contains two solutions of the differential equation $\dfrac{dy}{dx} = (y - 1)x$?

The current I in the given network is

A finite duration discrete-time signal $x[n]$ is obtained by sampling the continuous-time signal $x(t) = \cos(200\pi t)$ at sampling instants $t = n/400$, $n = 0, 1, \cdots, 7$. The 8-point discrete Fourier transform (DFT) of $x[n]$ is defined as

$X[k] = \sum_{n=0}^{7} x[n]e^{-j\frac{\pi kn}{4}}, \quad k = 0, 1, \cdots, 7.$

Which one of the following statements is TRUE?

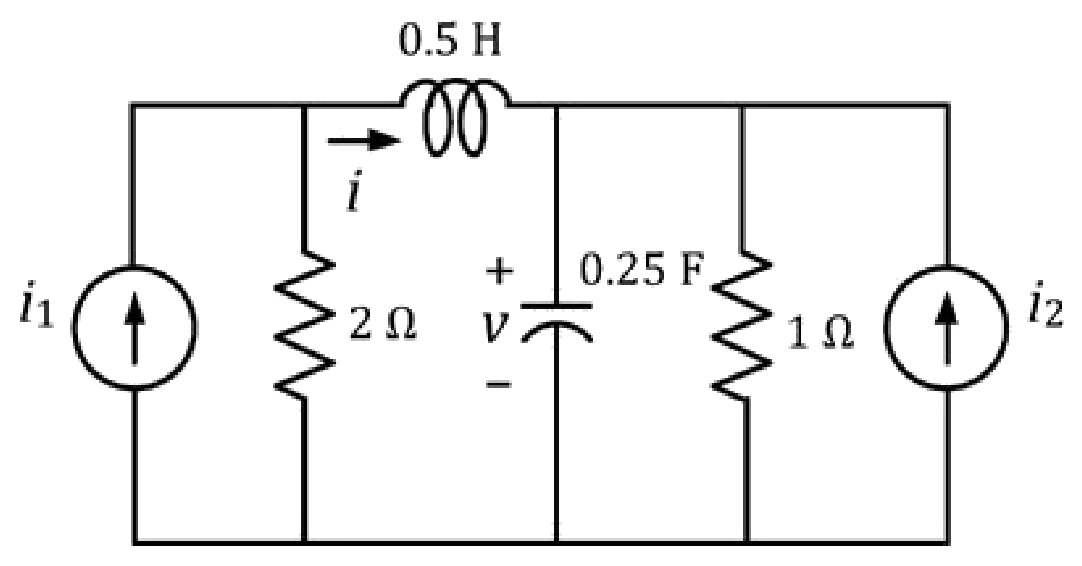

For the given circuit, which one of the following is the correct state equation?

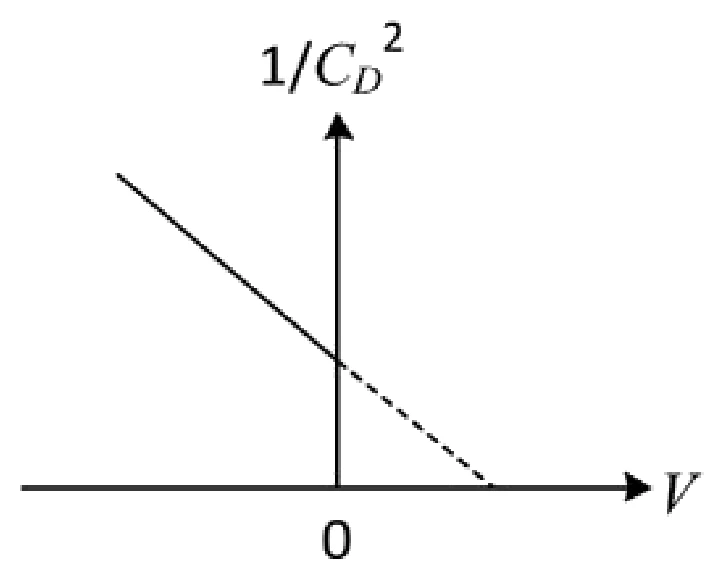

A one-sided abrupt pn junction diode has a depletion capacitance $C_D$ of 50 pF at a reverse bias of 0.2 V. The plot of $1/C_D^2$ versus the applied voltage $V$ for this diode is a straight line as shown in the figure below. The slope of the plot is ______ × $10^{20}$ F⁻²V⁻¹.

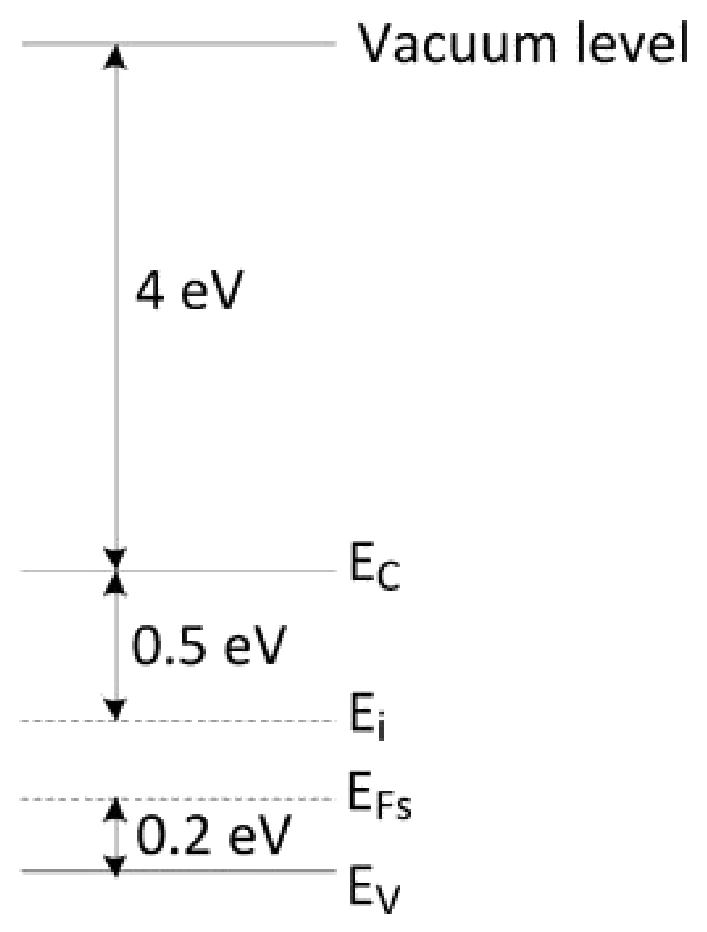

The band diagram of a $p$-type semiconductor with a band-gap of 1 eV is shown. Using this semiconductor, a MOS capacitor having $V_{TH}$ of −0.16 V, $C'_{ox}$ of 100 nF/cm² and a metal work function of 3.87 eV is fabricated. There is no charge within the oxide. If the voltage across the capacitor is $V_{TH}$, the magnitude of depletion charge per unit area (in C/cm²) is

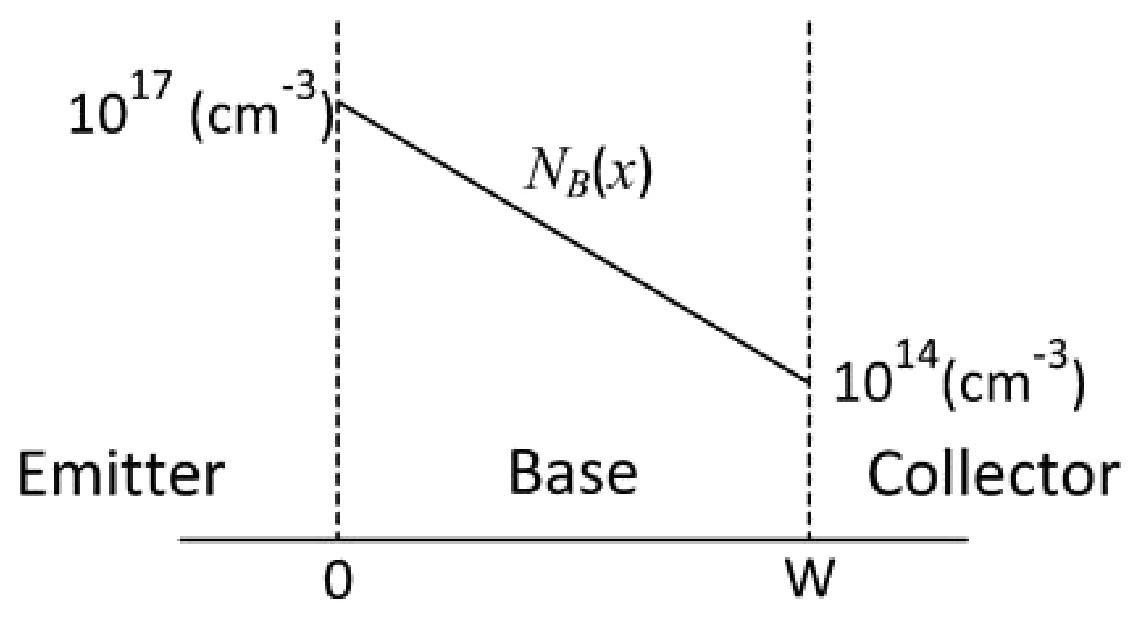

The base of an npn BJT T1 has a linear doping profile $N_B(x)$ as shown below. The base of another npn BJT T2 has a uniform doping $N_B$ of $10^{17}$ cm⁻³. All other parameters are identical for both the devices. Assuming that the hole density profile is the same as that of doping, the common-emitter current gain of T2 is

A pn junction solar cell of area 1.0 cm², illuminated uniformly with 100 mW cm⁻², has the following parameters: Efficiency = 15%, open circuit voltage = 0.7 V, fill factor = 0.8, and thickness = 200 µm. The charge of an electron is $1.6 \times 10^{-19}$ C. The average optical generation rate (in cm⁻³s⁻¹) is

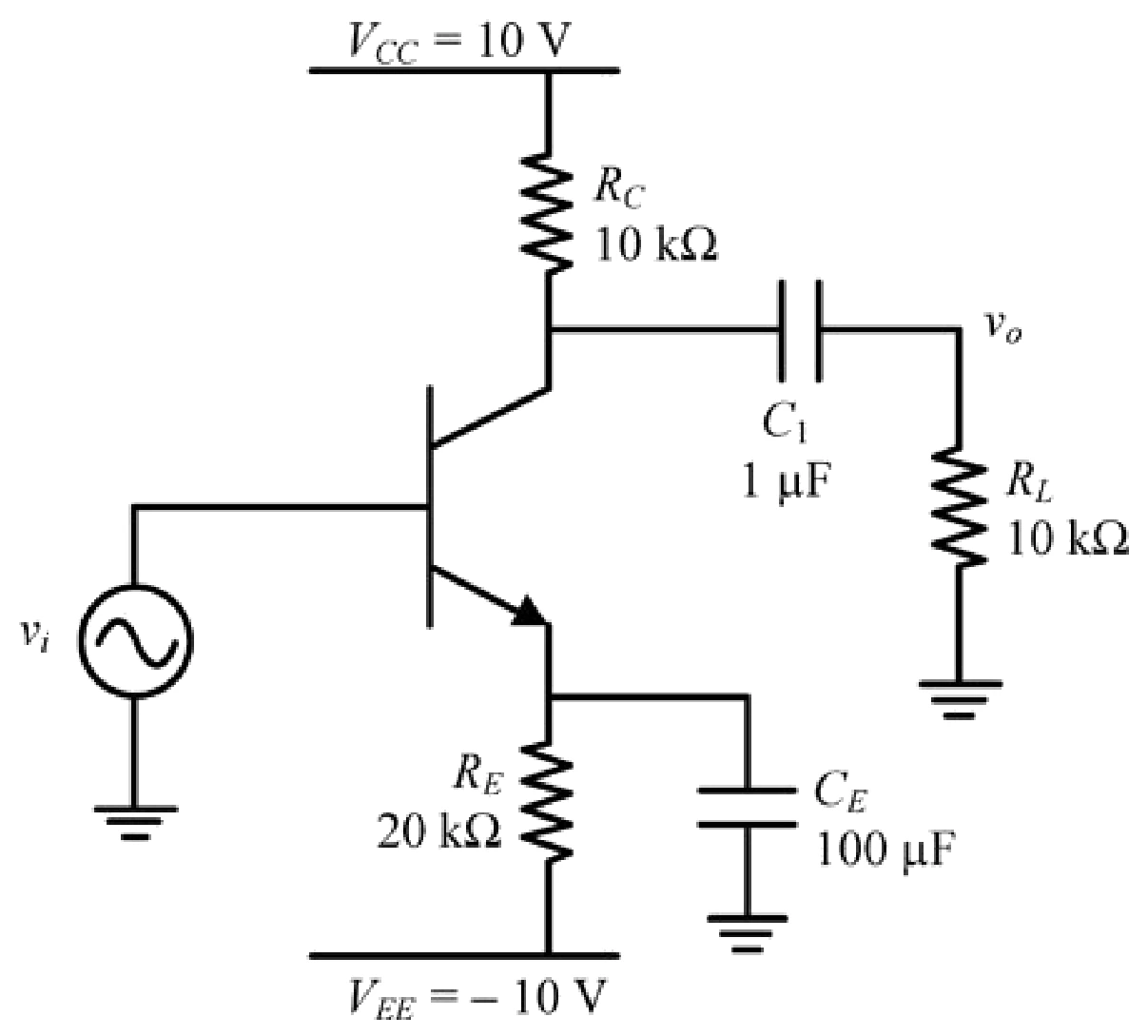

For the BJT in the amplifier shown below, $V_{BE} = 0.7$ V, $kT/q = 26$ mV. Assume that BJT output resistance ($r_o$) is very high and the base current is negligible. The capacitors are also assumed to be short circuited at signal frequencies. The input $v_i$ is direct coupled. The low frequency voltage gain $v_o/v_i$ of the amplifier is

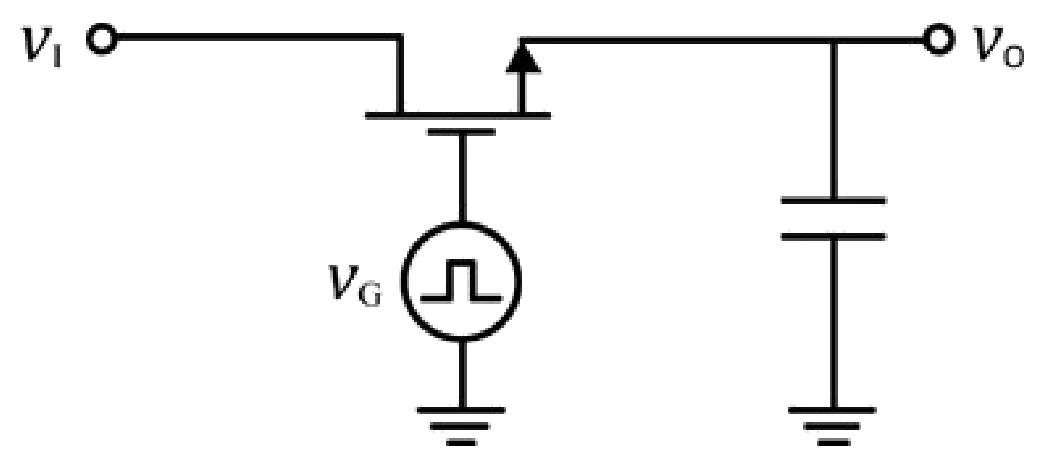

An enhancement MOSFET of threshold voltage 3 V is being used in the sample and hold circuit given below. Assume that the substrate of the MOS device is connected to −10 V. If the input voltage $V_I$ lies between ±10 V, the minimum and the maximum values of $V_G$ required for proper sampling and holding respectively, are

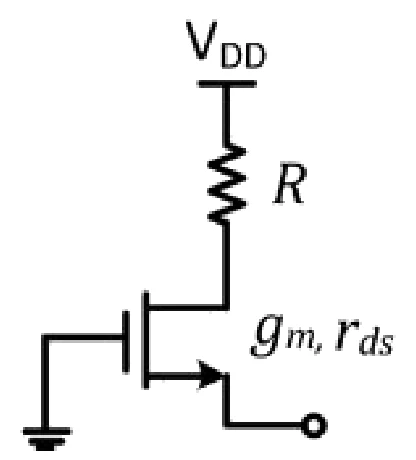

Using the incremental low frequency small-signal model of the MOS device, the Norton equivalent resistance of the following circuit is

P, Q, and R are the decimal integers corresponding to the 4-bit binary number 1100 considered in signed magnitude, 1’s complement, and 2’s complement representations, respectively. The 6-bit 2’s complement representation of $(P + Q + R)$ is

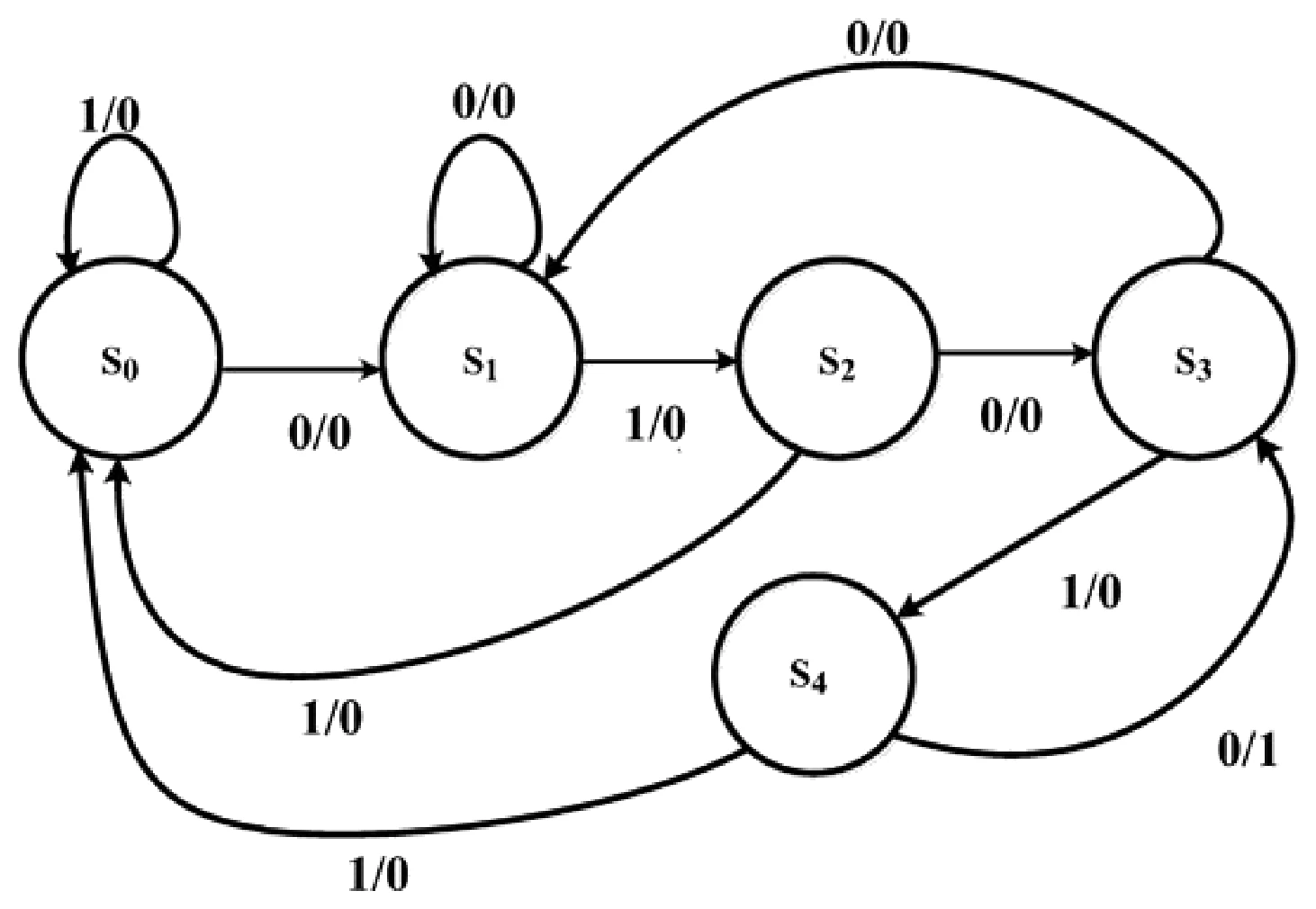

The state diagram of a sequence detector is shown below. State $S_0$ is the initial state of the sequence detector. If the output is 1, then

The characteristic equation of a system is

$s^3 + 3s^2 + (K + 2)s + 3K = 0.$

In the root locus plot for the given system, as $K$ varies from 0 to ∞, the break-away or break-in point(s) lie within

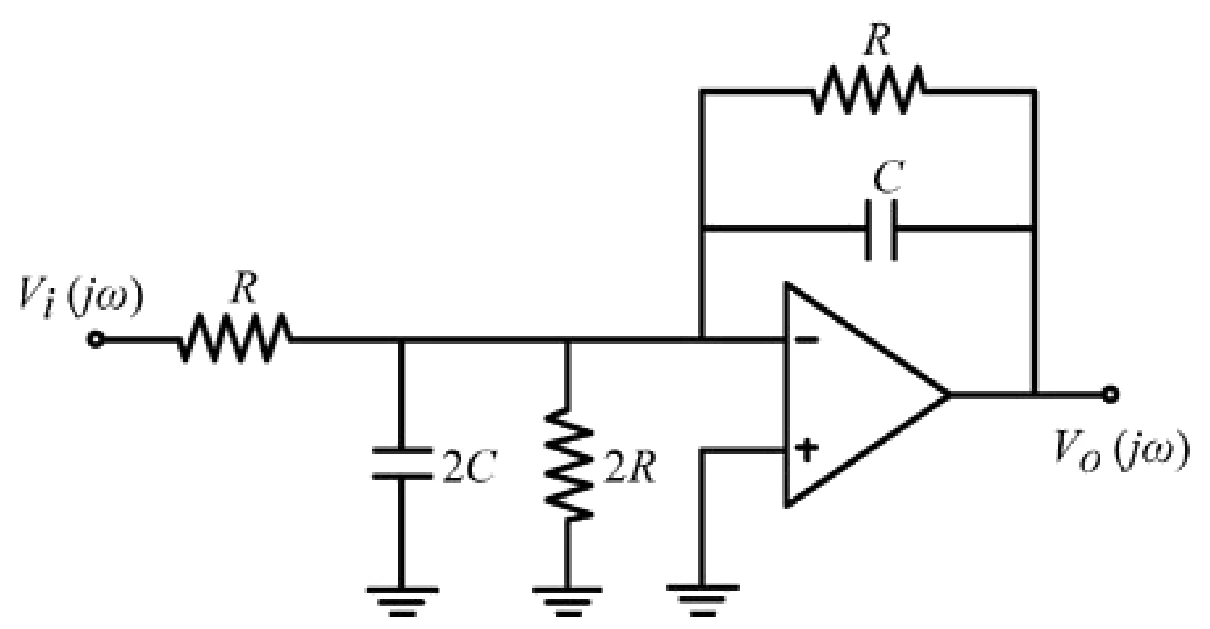

The components in the circuit given below are ideal. If $R = 2$ kΩ and $C = 1$ µF, the −3 dB cut-off frequency of the circuit in Hz is

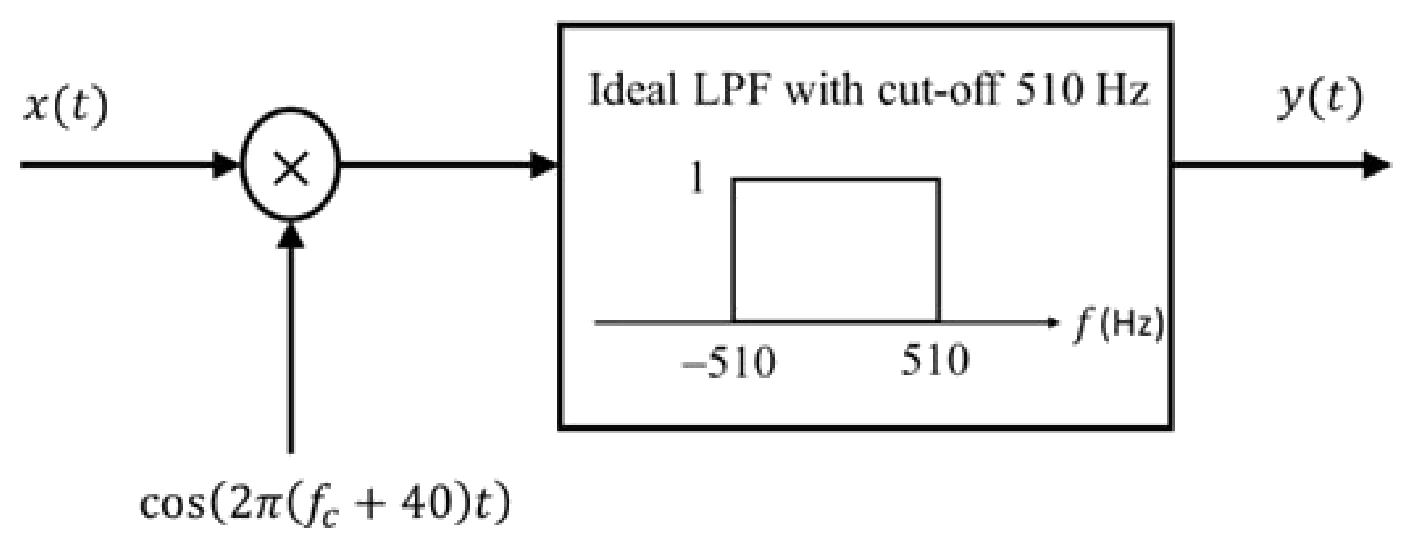

For the modulated signal $x(t) = m(t)\cos(2\pi f_ct)$, the message signal $m(t) = 4\cos(1000\pi t)$ and the carrier frequency $f_c$ is 1 MHz. The signal $x(t)$ is passed through a demodulator, as shown in the figure below. The output $y(t)$ of the demodulator is

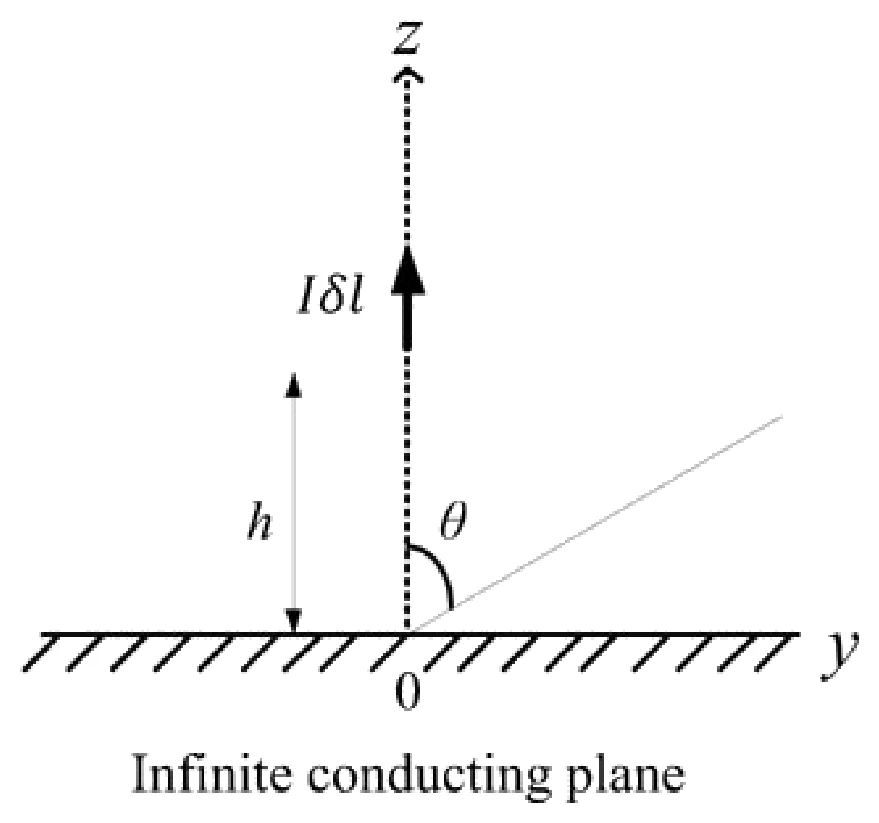

For an infinitesimally small dipole in free space, the electric field $E_\theta$ in the far field is proportional to $(e^{-jkr}/r)\sin\theta$, where $k = 2\pi/\lambda$. A vertical infinitesimally small electric dipole ($\delta l \ll \lambda$) is placed at a distance $h$ ($h > 0$) above an infinite ideal conducting plane, as shown in the figure. The minimum value of $h$, for which one of the maxima in the far field radiation pattern occurs at $\theta = 60^\circ$, is

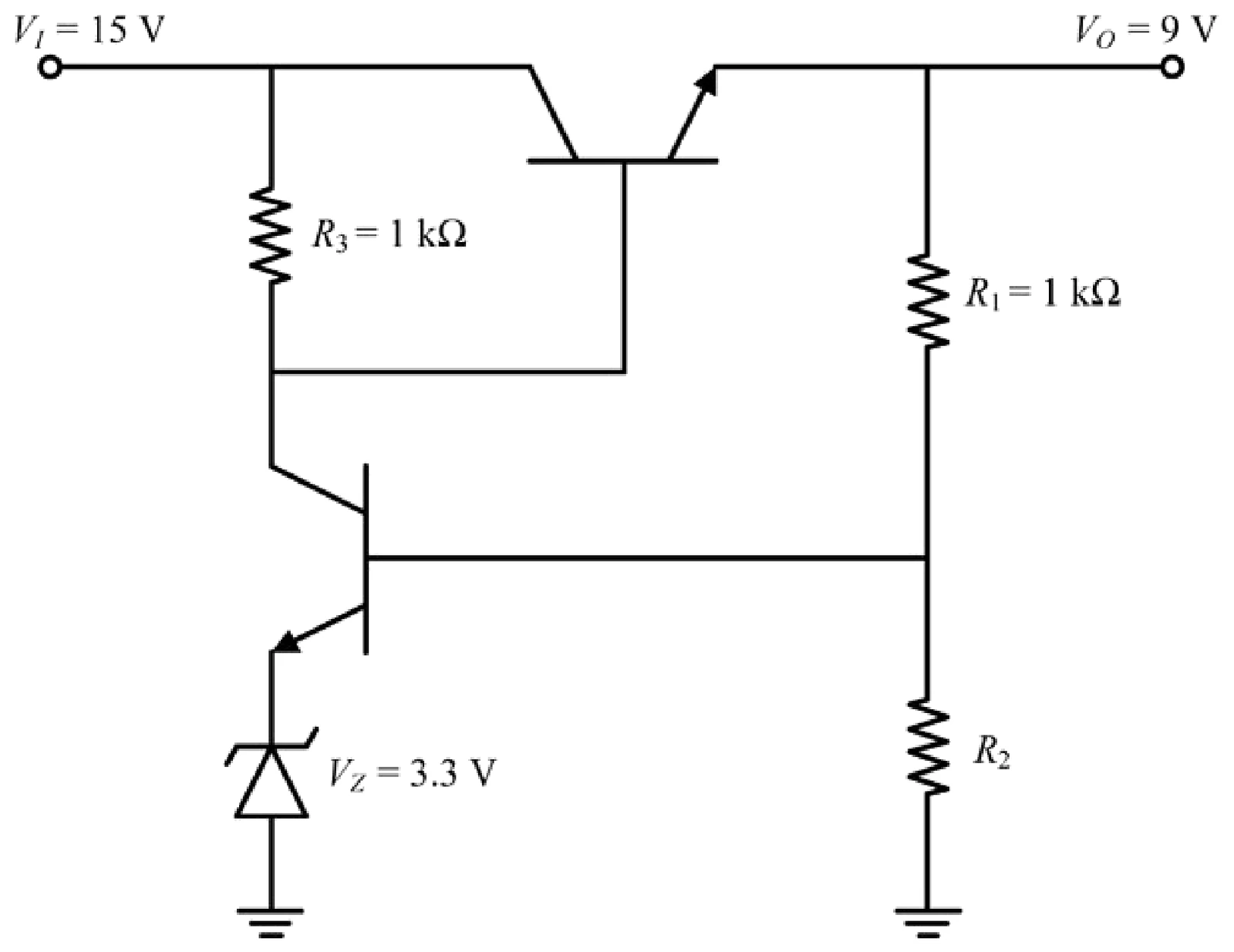

In the voltage regulator shown below, $V_I$ is the unregulated input at 15 V. Assume $V_{BE} = 0.7$ V and the base current is negligible for both the BJTs. If the regulated output $V_O$ is 9 V, the value of $R_2$ is __________ Ω.

The magnetic field of a uniform plane wave in vacuum is given by

$\vec{H}(x,y,z,t) = (\hat{a}_x + 2\hat{a}_y + b\hat{a}_z)\cos(\omega t + 3x - y - z).$

The value of $b$ is ______.

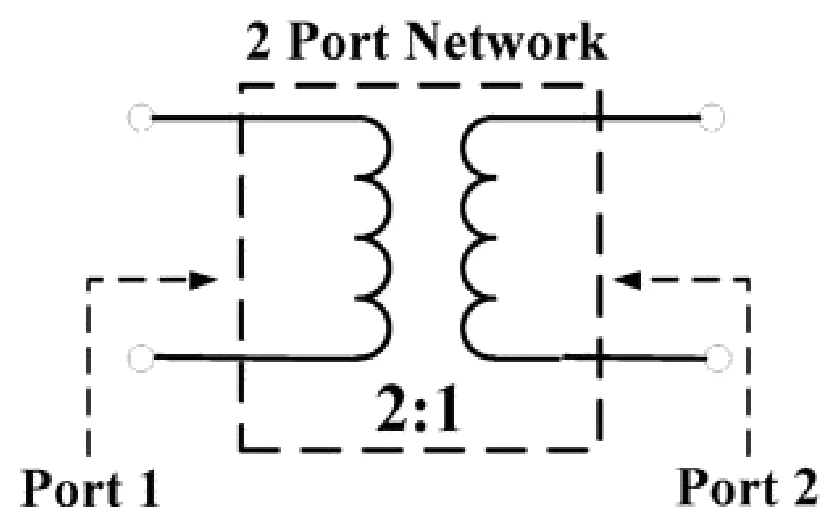

For a 2-port network consisting of an ideal lossless transformer, the parameter $S_{21}$ (rounded off to two decimal places) for a reference impedance of 10 Ω, is ______.

$S_{PM}(t)$ and $S_{FM}(t)$ as defined below, are the phase modulated and the frequency modulated waveforms, respectively, corresponding to the message signal $m(t)$ shown in the figure.

$S_{PM}(t) = \cos\left(1000\pi t + K_pm(t)\right)$

and

$S_{FM}(t) = \cos\left(1000\pi t + K_f\int_{-\infty}^{t}m(\tau)d\tau\right)$

where $K_p$ is the phase deviation constant in radians/volt and $K_f$ is the frequency deviation constant in radians/second/volt. If the highest instantaneous frequencies of $S_{PM}(t)$ and $S_{FM}(t)$ are same, then the value of the ratio $\frac{K_p}{K_f}$ is ______ seconds.

In a digital communication system, a symbol $S$ randomly chosen from the set $\{s_1, s_2, s_3, s_4\}$ is transmitted. It is given that $s_1 = -3$, $s_2 = -1$, $s_3 = +1$ and $s_4 = +2$. The received symbol is $Y = S + W$. $W$ is a zero-mean unit-variance Gaussian random variable and is independent of $S$. $P_i$ is the conditional probability of symbol error for the maximum likelihood (ML) decoding when the transmitted symbol $S = s_i$. The index $i$ for which the conditional symbol error probability $P_i$ is the highest is ______.

A system with transfer function $G(s) = \dfrac{1}{(s+1)(s+a)}$, $a > 0$ is subjected to an input $5\cos 3t$. The steady state output of the system is $\dfrac{1}{\sqrt{10}}\cos(3t - 1.892)$. The value of $a$ is ______.

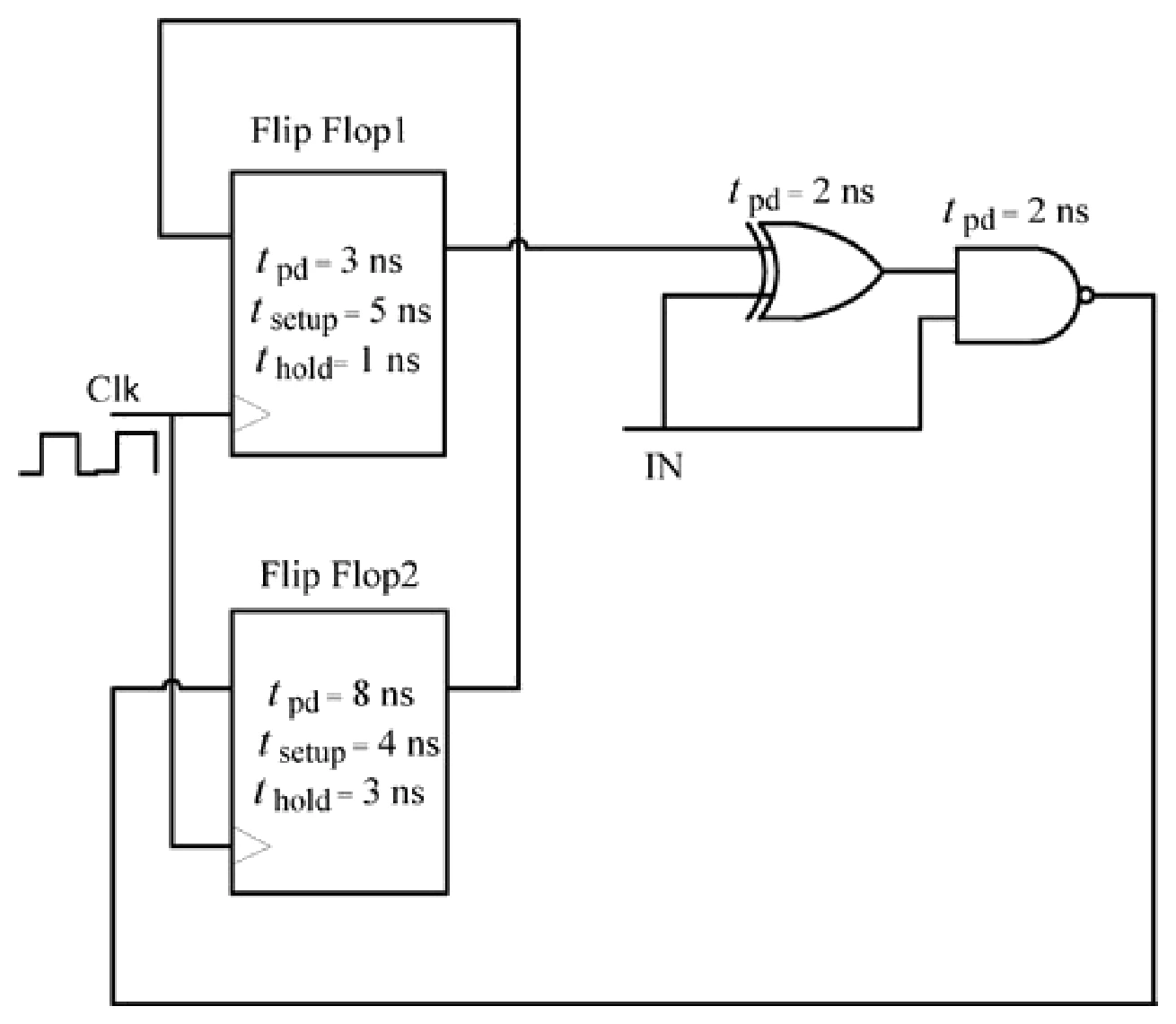

For the components in the sequential circuit shown below, $t_{pd}$ is the propagation delay, $t_{setup}$ is the setup time, and $t_{hold}$ is the hold time. The maximum clock frequency (rounded off to the nearest integer), at which the given circuit can operate reliably, is ______ MHz.

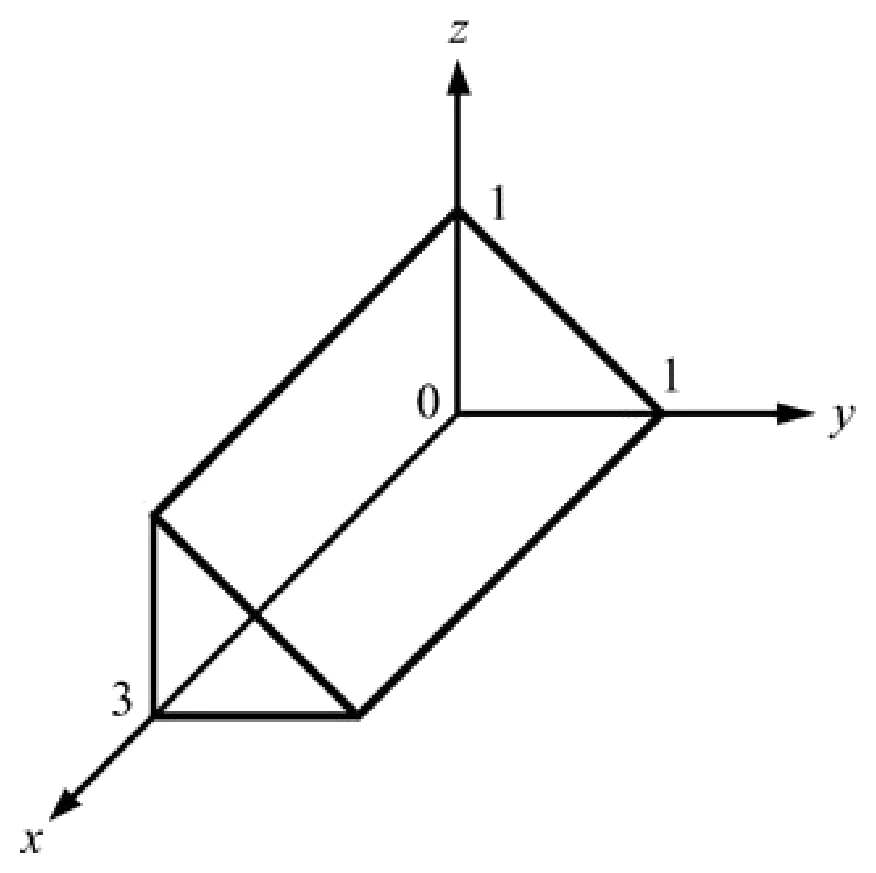

For the solid $S$ shown below, the value of $\iiint_S x\,dx\,dy\,dz$ (rounded off to two decimal places) is ______.

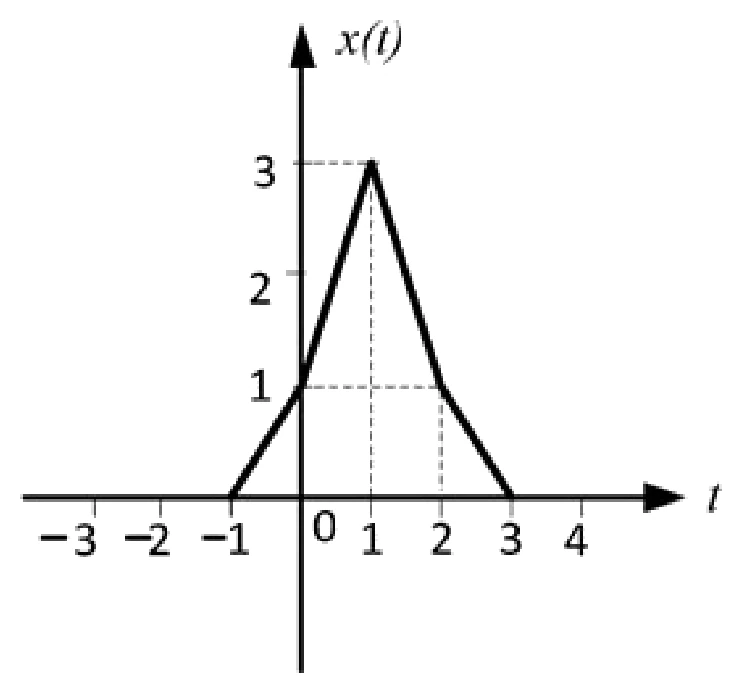

$X(\omega)$ is the Fourier transform of $x(t)$ shown below. The value of $\int_{-\infty}^{\infty}|X(\omega)|^2d\omega$ (rounded off to two decimal places) is ______.

The transfer function of a stable discrete-time LTI system is $H(z) = \dfrac{K(z - \alpha)}{z + 0.5}$, where $K$ and $\alpha$ are real numbers. The value of $\alpha$ (rounded off to one decimal place) with $|\alpha| > 1$, for which the magnitude response of the system is constant over all frequencies, is ______.

$X$ is a random variable with uniform probability density function in the interval $[-2, 10]$. For $Y = 2X - 6$, the conditional probability $P(Y \le 7 \mid X \ge 5)$ (rounded off to three decimal places) is ______.

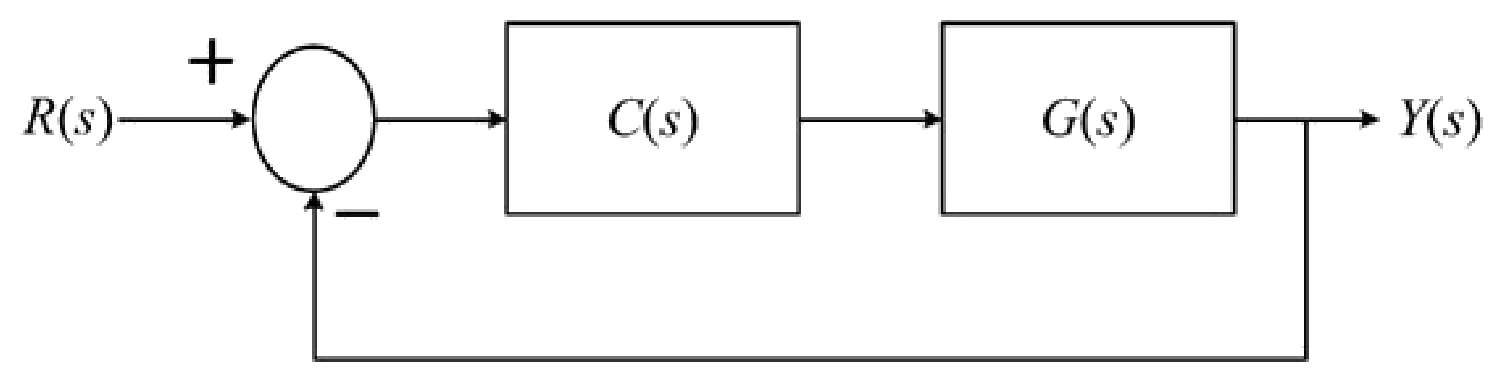

Consider the following closed loop control system

where $G(s) = \dfrac{1}{s(s+1)}$ and $C(s) = K\dfrac{s + 1}{s + 3}$. If the steady state error for a unit ramp input is 0.1, then the value of $K$ is ______.
