All 65 questions of GATE 2020 CS

Select the word that fits the analogy:

Cook : Cook :: Fly : ______

There are multiple routes to reach from node 1 to node 2, as shown in the network.

The cost of travel on an edge between two nodes is given in rupees. Nodes a, b, c, d, e, and f are toll booths. The toll price at toll booths marked a and e is Rs. 200, and is Rs. 100 for the other toll booths. Which is the cheapest route from node 1 to node 2?

The dawn of the 21st century witnessed the melting glaciers oscillating between giving too much and too little to billions of people who depend on them for fresh water. The UN climate report estimates that without deep cuts to man-made emissions, at least 30% of the northern hemisphere's surface permafrost could melt by the end of the century. Given this situation of imminent global exodus of billions of people displaced by rising seas, nation-states need to rethink their carbon footprint for political concerns, if not for environmental ones.

Which one of the following statements can be inferred from the given passage?

His knowledge of the subject was excellent but his classroom performance was ______.

Raman is confident of speaking English ______ six months as he has been practising regularly ______ the last three weeks.

Two straight lines are drawn perpendicular to each other in the X-Y plane. If $\alpha$ and $\beta$ are the acute angles the straight lines make with the X-axis, then $\alpha+\beta$ is ______.

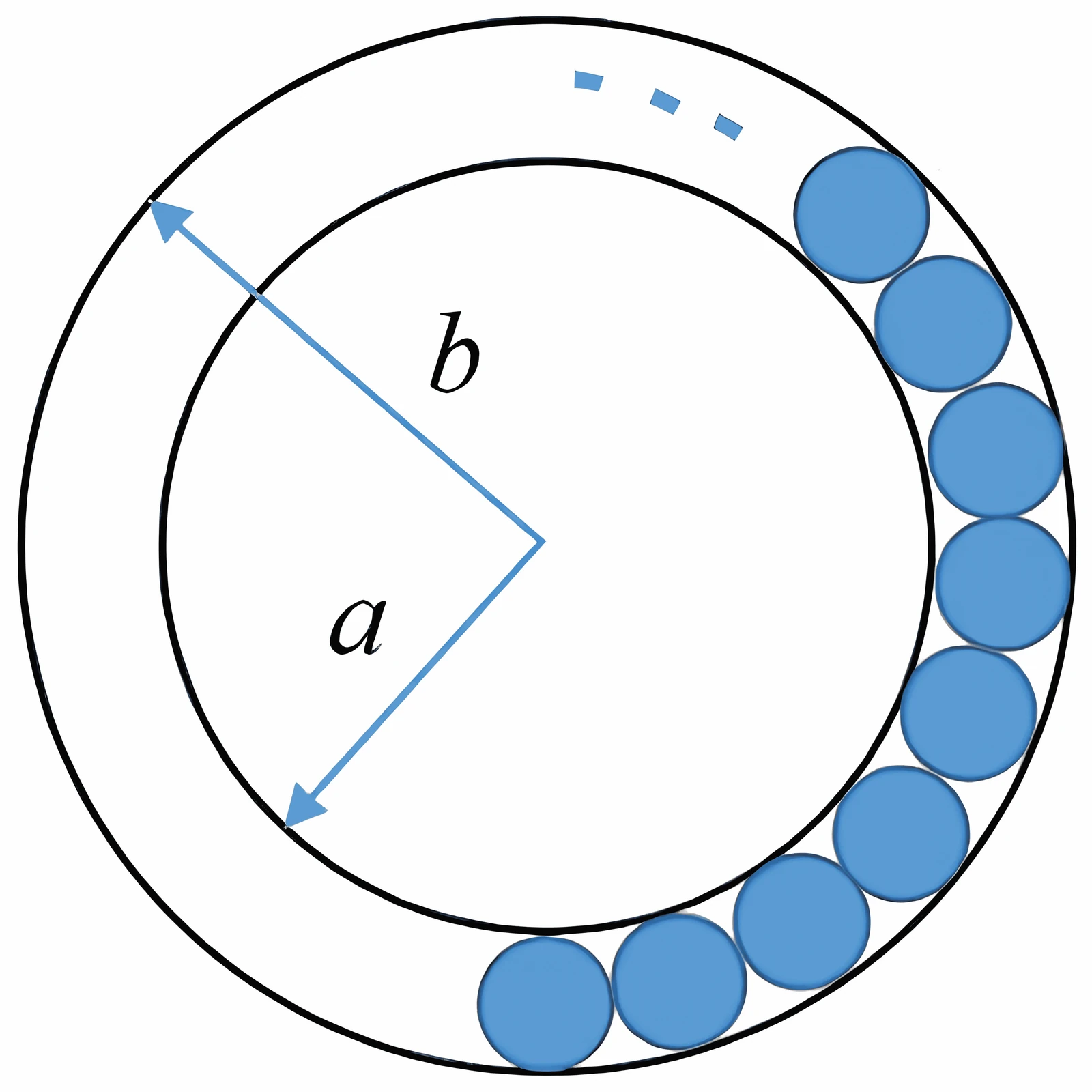

The figure below shows an annular ring with outer and inner radii as $b$ and $a$, respectively. The annular space has been painted in the form of blue colour circles touching the outer and inner periphery of annular space. If maximum $n$ number of circles can be painted, then the unpainted area available in annular space is ______.

Goods and Services Tax (GST) is an indirect tax introduced in India in 2017 that is imposed on the supply of goods and services, and it subsumes all indirect taxes except few. It is a destination-based tax imposed on goods and services used, and it is not imposed at the point of origin from where goods come. GST also has a few components specific to state governments, central government and Union Territories (UTs).

Which one of the following statements can be inferred from the given passage?

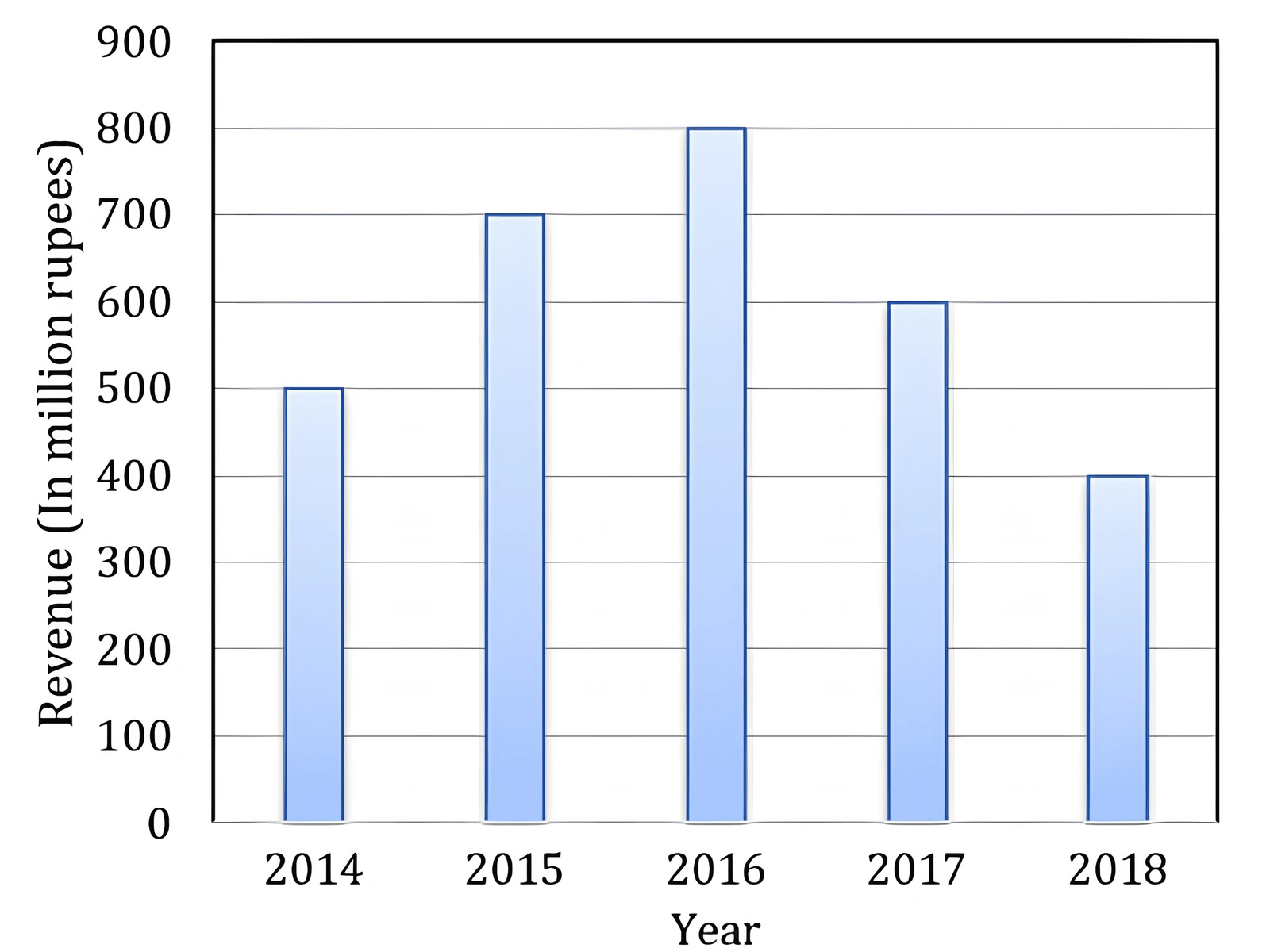

The total revenue of a company during 2014–2018 is shown in the bar graph. If the total expenditure of the company in each year is 500 million rupees, then the aggregate profit or loss (in percentage) on the total expenditure of the company during 2014–2018 is ______.

If $P = 3$, $R = 27$, $T = 243$, then $Q + S = ______.

A multiplexer is placed between a group of 32 registers and an accumulator to regulate data movement such that at any given point in time the content of only one register will move to the accumulator.

The minimum number of select lines needed for the multiplexer is __________.

What is the worst-case time complexity of inserting $n^2$ elements into an AVL tree with $n$ elements initially?

Assume that you have made a request for a web page through your web browser to a web server. Initially, the browser cache is empty. Further, the browser is configured to send HTTP requests in non-persistent mode. The web page contains text and five very small images.

The minimum number of TCP connections required to display the web page completely in your browser is __________.

Consider the following statements about the functionality of an IP-based router.

I. A router does not modify the IP packets during forwarding.

II. It is not necessary for a router to implement any routing protocol.

III. A router should reassemble IP fragments if the MTU of the outgoing link is larger than the size of the incoming IP packet.

Which of the above statements is/are TRUE?

If there are $m$ input lines and $n$ output lines for a decoder that is used to uniquely address a byte-addressable 1 KB RAM, then the minimum value of $m+n$ is __________.

Consider the following grammar.

The number of reduction steps taken by a bottom-up parser while accepting the string aaadbbb is __________.

Which one of the following is used to represent the supporting many-one relationships of a weak entity set in an entity-relationship diagram?

Consider the language

and the following statements.

I. $L$ is deterministic context-free.

II. $L$ is context-free but not deterministic context-free.

III. $L$ is not LL($k$) for any $k$.

Which of the above statements is/are TRUE?

Let $G$ be a group of 35 elements. Then the largest possible size of a subgroup of $G$ other than $G$ itself is __________.

Consider a relational database containing the following schemas.

Catalogue

Suppliers

Parts

The primary key of each table is indicated by the underlined constituent fields.

SELECT s.sno, s.sname
FROM Suppliers s, Catalogue c
WHERE s.sno = c.sno AND
      cost > (SELECT AVG(cost)
              FROM Catalogue
              WHERE pno = 'P4'
              GROUP BY pno);

The number of rows returned by the above SQL query is:

For parameters $a$ and $b$, both of which are $\omega(1)$,

and

Then $T(n)$ is:

Consider the following statements.

I. Daisy chaining is used to assign priorities in attending interrupts.

II. When a device raises a vectored interrupt, the CPU does polling to identify the source of interrupt.

III. In polling, the CPU periodically checks the status bits to know if any device needs its attention.

IV. During DMA, both the CPU and DMA controller can be bus masters at the same time.

Which of the above statements is/are TRUE?

The preorder traversal of a binary search tree is:

Which one of the following is the postorder traversal of the tree?

What is the worst-case time complexity of inserting $n$ elements into an empty linked list, if the linked list needs to be maintained in sorted order?

Consider allocation of memory to a new process. Assume that none of the existing holes in the memory will exactly fit the process's memory requirement. Hence, a new hole of smaller size will be created if allocation is made in any of the existing holes.

Which one of the following statements is TRUE?

Consider a double hashing scheme in which the primary hash function is

and the secondary hash function is

Assume that the table size is 23. Then the address returned by probe 1 in the probe sequence, where the probe sequence begins at probe 0, for key value $k=90$ is __________.

Consider the following data path diagram.

Consider an instruction $R0 \leftarrow R1 + R2$. The following steps are used to execute it over the given data path. Assume that PC is incremented appropriately. The subscripts out and in indicate read and write operations, respectively.

1. $R2_{out},\ TEMP1_{in},\ ALU_{add},\ TEMP2_{in}$
2. $R1_{out},\ TEMP1_{in}$
3. $PC_{out},\ MAR_{in},\ MEM_{read}$
4. $TEMP2_{out},\ R0_{in}$
5. $MDR_{out},\ IR_{in}$

Which one of the following is the correct order of execution of the above steps?

Consider the following statements about process state transitions for a system using preemptive scheduling.

I. A running process can move to ready state.

II. A ready process can move to running state.

III. A blocked process can move to running state.

IV. A blocked process can move to ready state.

Which of the above statements are TRUE?

Consider the following C program.

#include <stdio.h>
int main()
{
    int a[4][5] = {
        {1, 2, 3, 4, 5},
        {6, 7, 8, 9, 10},
        {11, 12, 13, 14, 15},
        {16, 17, 18, 19, 20}
    };

    printf("%d\n", *(*(a + **a + 2) + 3));
    return 0;
}

The output of the program is __________.

Consider the following statements.

I. If $L_1 \cup L_2$ is regular, then both $L_1$ and $L_2$ must be regular.

II. The class of regular languages is closed under infinite union.

Which of the above statements is/are TRUE?

Consider the functions:

I. $e^{-x}$

II. $x^2-\sin x$

III. $\sqrt{x^3+1}$

Which of the above functions is/are increasing everywhere in $[0,1]$?

Let $X$ be the set of all binary relations on the set $\{1,2,3\}$. Suppose a relation is chosen from $X$ at random. The probability that the chosen relation is reflexive, rounded off to 3 decimal places, is __________.

Consider the following statements.

I. Symbol table is accessed only during lexical analysis and syntax analysis.

II. Compilers for programming languages that support recursion necessarily need heap storage for memory allocation in the run-time environment.

III. Errors violating the condition "any variable must be declared before its use" are detected during syntax analysis.

Which of the above statements is/are TRUE?

A direct mapped cache memory of 1 MB has a block size of 256 bytes. The cache has an access time of 3 ns and a hit rate of 94%.

During a cache miss, it takes 20 ns to bring the first word of a block from the main memory, while each subsequent word takes 5 ns. The word size is 64 bits.

The average memory access time in ns, rounded off to 1 decimal place, is __________.

Which one of the following regular expressions represents the set of all binary strings with an odd number of 1's?

Which of the following languages are undecidable? Note that $\langle M\rangle$ indicates encoding of the Turing machine $M$.

Consider a graph $G=(V,E)$, where

and

The weight of the edge $(v_i,v_j)$ is $|i-j|$. The weight of a minimum spanning tree of $G$ is __________.

Consider the productions

and

Each of the five non-terminals $A,P,Q,X,Y$ has two attributes: $s$ is a synthesized attribute, and $i$ is an inherited attribute.

Consider the following attribute rules.

Rule 1:

Rule 2:

Which one of the following is TRUE?

Let $G=(V,E)$ be a weighted, connected graph and let $T$ be a minimum spanning tree (MST) of $G$ maintained using adjacency lists. Suppose a new weighted edge $(u,v)$ is added to $G$. The worst-case time complexity of determining whether $T$ is still an MST of the resultant graph is:

Consider three registers $R1$, $R2$, and $R3$ that store numbers in IEEE-754 single precision floating point format. Assume that $R1$ and $R2$ contain the values, in hexadecimal notation, 0x42200000 and 0xC1200000, respectively.

If $R3 = R1/R2$, what is the value stored in $R3$?

For $n>2$, let $a\in\{0,1\}^n$ be a non-zero vector. Suppose that $x$ is chosen uniformly at random from $\{0,1\}^n$. Then, the probability that

is an odd number is __________.

Which one of the following predicate formulas is NOT logically valid?

Note that $W$ is a predicate formula without any free occurrence of $x$.

Consider a TCP connection between a client and a server with the following specifications:

• round trip time is 6 ms
• receiver advertised window is 50 KB
• slow-start threshold at the client is 32 KB
• maximum segment size is 2 KB

The connection is established at time $t=0$. Assume that there are no timeouts and errors during transmission.

Then the size of the congestion window, in KB, at time $t+60$ ms after all acknowledgements are processed is __________.

An organization requires a range of IP addresses to assign one to each of its 1500 computers. The organization has approached an Internet Service Provider (ISP) for this task. The ISP uses CIDR and serves the requests from the available IP address space 202.61.0.0/17.

The ISP wants to assign an address space to the organization which will minimize the number of routing entries in the ISP's router using route aggregation. Which of the following address spaces are potential candidates from which the ISP can allot any one to the organization?

I. 202.61.84.0/21
II. 202.61.104.0/21
III. 202.61.64.0/21
IV. 202.61.144.0/21

In a balanced binary search tree with $n$ elements, what is the worst-case time complexity of reporting all elements in the range $[a,b]$? Assume that the number of reported elements is $k$.

A processor has 64 registers and uses 16-bit instruction format. It has two types of instructions: I-type and R-type. Each I-type instruction contains an opcode, a register name, and a 4-bit immediate value. Each R-type instruction contains an opcode and two register names.

If there are 8 distinct I-type opcodes, then the maximum number of distinct R-type opcodes is __________.

The number of permutations of the characters in IILACC such that no character appears in its original position, if the two I's are indistinguishable, is __________.

Let $G=(V,E)$ be a directed weighted graph with weight function $w:E\to \mathbb{R}$. For some function $f:V\to \mathbb{R}$, for each edge $(u,v)\in E$, define

Which one of the options completes the following sentence so that it is TRUE?

The shortest paths in $G$ under $w$ are shortest paths under $w'$ also, ________.

Consider the array representation of a binary min-heap containing 1023 elements.

The minimum number of comparisons required to find the maximum in the heap is __________.

Consider the following set of processes, assumed to have arrived at time 0. Consider the CPU scheduling algorithms Shortest Job First (SJF) and Round Robin (RR). For RR, assume that the processes are scheduled in the order $P_1,P_2,P_3,P_4$.

If the time quantum for RR is 4 ms, then the absolute value of the difference between the average turnaround times, in ms, of SJF and RR, rounded off to 2 decimal places, is __________.

Each of a set of $n$ processes executes the following code using two semaphores $a$ and $b$ initialized to 1 and 0, respectively. Assume that count is a shared variable initialized to 0 and not used in CODE SECTION P.

CODE SECTION P is executed first. Then the following synchronization code is executed:

wait(a);
count = count + 1;
if (count == n) signal(b);
signal(a);
wait(b);
signal(b);

Then CODE SECTION Q is executed.

What does the code achieve?

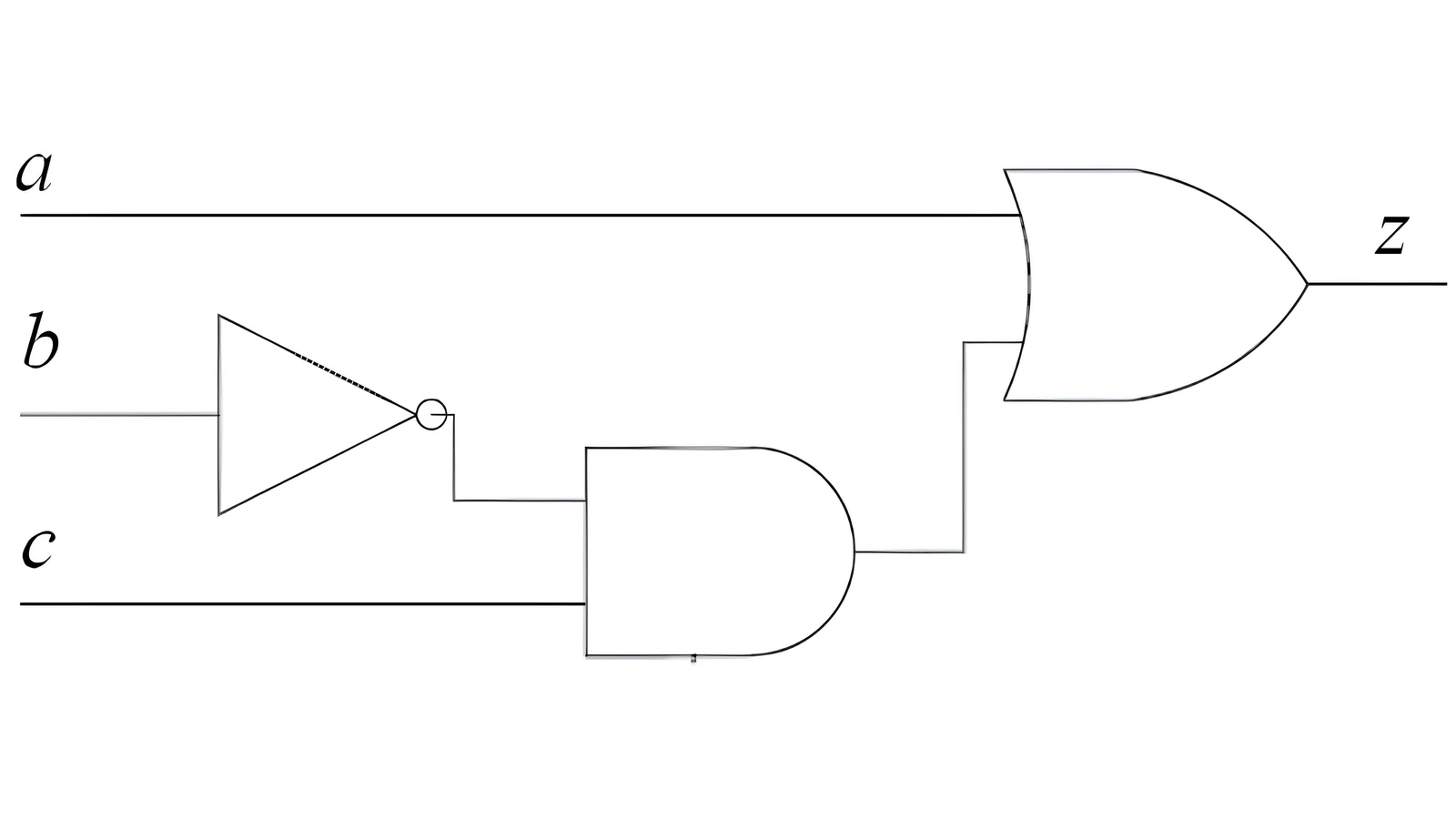

Consider the Boolean function $z(a,b,c)$ represented by the circuit shown below.

Which one of the following minterm lists represents the circuit given above?

Consider the following languages.

Which one of the following is TRUE?

Let $A$ and $B$ be two $n \times n$ matrices over real numbers. Let $\operatorname{rank}(M)$ and $\det(M)$ denote the rank and determinant of a matrix $M$, respectively.

Consider the following statements.

I. $\operatorname{rank}(AB)=\operatorname{rank}(A)\operatorname{rank}(B)$

II. $\det(AB)=\det(A)\det(B)$

III. $\operatorname{rank}(A+B)\le \operatorname{rank}(A)+\operatorname{rank}(B)$

IV. $\det(A+B)\le \det(A)+\det(B)$

Which of the above statements are TRUE?

Consider the following C functions.

int fun1(int n) {
    static int i = 0;
    if (n > 0) {
        ++i;
        fun1(n-1);
    }
    return(i);
}

int fun2(int n) {
    static int i = 0;
    if (n > 0) {
        i = i + fun1(n);
        fun2(n-1);
    }
    return(i);
}

The return value of fun2(5) is __________.

Graph $G$ is obtained by adding vertex $x$ to $K_{3,4}$ and making $x$ adjacent to every vertex of $K_{3,4}$. The minimum number of colours required to edge-colour $G$ is __________.

Consider a paging system that uses 1-level page table residing in main memory and a TLB for address translation. Each main memory access takes 100 ns and TLB lookup takes 20 ns. Each page transfer to/from the disk takes 5000 ns.

Assume that the TLB hit ratio is 95%, page fault rate is 10%. Assume that in 20% of the total page faults, a dirty page has to be written back to disk before the required page is read from disk. TLB update time is negligible.

The average memory access time in ns, rounded off to 1 decimal places, is __________.

Consider the following language.

The minimum number of states in a DFA that accepts $L$ is __________.

Consider a relational table $R$ that is in 3NF, but not in BCNF. Which one of the following statements is TRUE?

Consider a schedule of transactions $T_1$ and $T_2$:

Here, RX stands for "Read(X)" and WX stands for "Write(X)". Which one of the following schedules is conflict equivalent to the above schedule?

In the options, each schedule is written in time order; $R_i(X)$ and $W_i(X)$ are Read(X) and Write(X) by $T_i$.

Consider a non-pipelined processor operating at 2.5 GHz. It takes 5 clock cycles to complete an instruction. You are going to make a 5-stage pipeline out of this processor. Overheads associated with pipelining force you to operate the pipelined processor at 2 GHz.

In a given program, assume that 30% are memory instructions, 60% are ALU instructions and the rest are branch instructions. 5% of the memory instructions cause stalls of 50 clock cycles each due to cache miss and 50% of the branch instructions cause stalls of 2 cycles each. Assume that there are no stalls associated with the execution of ALU instructions.

For this program, the speedup achieved by the pipelined processor over the non-pipelined processor, rounded off to 2 decimal places, is __________.

A computer system with a word length of 32 bits has a 16 MB byte-addressable main memory and a 64 KB, 4-way set associative cache memory with a block size of 256 bytes. Consider the following four physical addresses represented in hexadecimal notation.

Which one of the following is TRUE?

Consider a database implemented using B+ tree for file indexing and installed on a disk drive with block size of 4 KB. The size of search key is 12 bytes and the size of tree/disk pointer is 8 bytes. Assume that the database has one million records. Also assume that no node of the B+ tree and no records are present initially in main memory. Consider that each record fits into one disk block.

The minimum number of disk accesses required to retrieve any record in the database is __________.

Consider the following C functions.

int tob(int b, int* arr) {
    int i;
    for (i = 0; b > 0; i++) {
        if (b % 2) arr[i] = 1;
        else arr[i] = 0;
        b = b / 2;
    }
    return(i);
}

int pp(int a, int b) {
    int arr[20];
    int i, tot = 1, ex, len;
    ex = a;
    len = tob(b, arr);
    for (i = 0; i < len; i++) {
        if (arr[i] == 1)
            tot = tot * ex;
        ex = ex * ex;
    }
    return(tot);
}

The value returned by pp(3,4) is __________.

Consider the following five disk access requests of the form (request id, cylinder number) that are present in the disk scheduler queue at a given time.

Assume the head is positioned at cylinder 100. The scheduler follows Shortest Seek Time First scheduling to service the requests.

Which one of the following statements is FALSE?
