All 65 questions of GATE 2018 CS

“From where are they bringing their books? ________ bringing _______ books from _____.”

The words that best fill the blanks in the above sentence are:

What is the missing number in the following sequence?

“A _________ investigation can sometimes yield new facts, but typically organized ones are more successful.”

The word that best fills the blank in the above sentence is:

The area of a square is $d$. What is the area of the circle which has the diagonal of the square as its diameter?

What would be the smallest natural number which when divided either by 20 or by 42 or by 76 leaves a remainder of 7 in each case?

A six sided unbiased die with four green faces and two red faces is rolled seven times. Which of the following combinations is the most likely outcome of the experiment?

In the figure below, $\angle DEC + \angle BFC$ is equal to ____________.

In a party, 60% of the invited guests are male and 40% are female. If 80% of the invited guests attended the party and if all the invited female guests attended, what would be the ratio of males to females among the attendees in the party?

In appreciation of the social improvements completed in a town, a wealthy philanthropist decided to gift Rs 750 to each male senior citizen in the town and Rs 1000 to each female senior citizen.

Altogether, there were 300 senior citizens eligible for this gift. However, only $\frac{8}{9}$th of the eligible men and $\frac{2}{3}$rd of the eligible women claimed the gift.

How much money, in Rupees, did the philanthropist give away in total?

If $pqr \ne 0$ and

what is the value of the product $xyz$?

Consider the following C program:

#include <stdio.h>

int counter = 0;

int calc(int a, int b) {
    int c;
    counter++;
    if (b == 3)
        return (a*a*a);
    else {
        c = calc(a, b/3);
        return (c*c*c);
    }
}

int main() {
    calc(4, 81);
    printf("%d", counter);
}

The output of this program is __________.

Consider a matrix

where

Here, $v^T$ denotes the transpose of $v$. The largest eigenvalue of $A$ is __________.

The set of all recursively enumerable languages is:

Let $\oplus$ and $\odot$ denote the Exclusive OR and Exclusive NOR operations, respectively.

Which one of the following is NOT CORRECT?

In an Entity-Relationship (ER) model, suppose $R$ is a many-to-one relationship from entity set $E_1$ to entity set $E_2$.

Assume that $E_1$ and $E_2$ participate totally in $R$ and that the cardinality of $E_1$ is greater than the cardinality of $E_2$.

Which one of the following is true about $R$?

Consider the following statements regarding the slow start phase of the TCP congestion control algorithm. Note that cwnd stands for the TCP congestion window and MSS denotes the Maximum Segment Size.

(i) The cwnd increases by 2 MSS on every successful acknowledgment.
(ii) The cwnd approximately doubles on every successful acknowledgement.
(iii) The cwnd increases by 1 MSS every round trip time.
(iv) The cwnd approximately doubles every round trip time.

Which one of the following is correct?

The following are some events that occur after a device controller issues an interrupt while process $L$ is under execution.

(P) The processor pushes the process status of $L$ onto the control stack.
(Q) The processor finishes the execution of the current instruction.
(R) The processor executes the interrupt service routine.
(S) The processor pops the process status of $L$ from the control stack.
(T) The processor loads the new PC value based on the interrupt.

Which one of the following is the correct order in which the events above occur?

Which one of the following is a closed form expression for the generating function of the sequence $\{a_n\}$, where

for all $n = 0,1,2,\ldots$?

The postorder traversal of a binary tree is:

The inorder traversal of the same tree is:

The height of a tree is the length of the longest path from the root to any leaf. The height of the binary tree above is __________.

A 32-bit wide main memory unit with a capacity of 1 GB is built using $256M \times 4$-bit DRAM chips. The number of rows of memory cells in the DRAM chip is $2^{14}$.

The time taken to perform one refresh operation is 50 nanoseconds. The refresh period is 2 milliseconds.

The percentage, rounded to the closest integer, of the time available for performing the memory read/write operations in the main memory unit is __________.

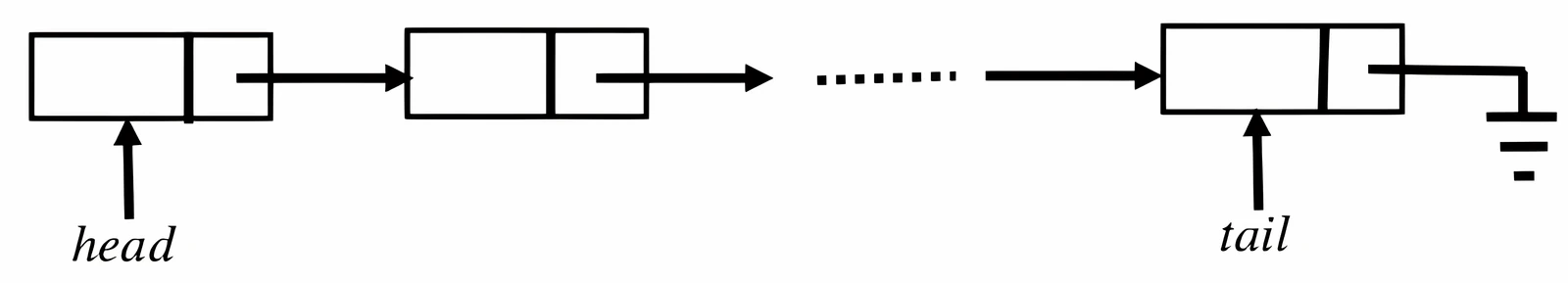

A queue is implemented using a non-circular singly linked list. The queue has a head pointer and a tail pointer, as shown in the figure.

Let $n$ denote the number of nodes in the queue. Let enqueue be implemented by inserting a new node at the head, and dequeue be implemented by deletion of a node from the tail.

Which one of the following is the time complexity of the most time-efficient implementation of enqueue and dequeue, respectively, for this data structure?

Which one of the following statements is FALSE?

Consider the following two tables and four queries in SQL.

Book(isbn, bname)
Stock(isbn, copies)

Query 1:

SELECT B.isbn, S.copies
FROM Book B INNER JOIN Stock S
ON B.isbn = S.isbn;

Query 2:

SELECT B.isbn, S.copies
FROM Book B LEFT OUTER JOIN Stock S
ON B.isbn = S.isbn;

Query 3:

SELECT B.isbn, S.copies
FROM Book B RIGHT OUTER JOIN Stock S
ON B.isbn = S.isbn;

Query 4:

SELECT B.isbn, S.copies
FROM Book B FULL OUTER JOIN Stock S
ON B.isbn = S.isbn;

Which one of the queries above is certain to have an output that is a superset of the outputs of the other three queries?

Let $N$ be an NFA with $n$ states. Let $k$ be the number of states of a minimal DFA which is equivalent to $N$.

Which one of the following is necessarily true?

Match the following:

Consider a long-lived TCP session with an end-to-end bandwidth of 1 Gbps $(=10^9$ bits per second). The session starts with a sequence number of 1234.

The minimum time, in seconds, rounded to the closest integer, before this sequence number can be used again is __________.

Let $G$ be a finite group on 84 elements. The size of a largest possible proper subgroup of $G$ is __________.

Consider a process executing on an operating system that uses demand paging. The average time for a memory access in the system is $M$ units if the corresponding memory page is available in memory, and $D$ units if the memory access causes a page fault. It has been experimentally measured that the average time taken for a memory access in the process is $X$ units.

Which one of the following is the correct expression for the page fault rate experienced by the process?

Two people, P and Q, decide to independently roll two identical dice, each with 6 faces, numbered 1 to 6. The person with the lower number wins. In case of a tie, they roll the dice repeatedly until there is no tie.

Define a trial as a throw of the dice by P and Q. Assume that all 6 numbers on each dice are equi-probable and that all trials are independent.

The probability, rounded to 3 decimal places, that one of them wins on the third trial is __________.

Consider the following C program.

#include <stdio.h>

struct Ournode {
    char x, y, z;
};

int main() {
    struct Ournode p = {'1', '0', 'a' + 2};
    struct Ournode *q = &p;
    printf("%c, %c", *((char*)q + 1), *((char*)q + 2));
    return 0;
}

The output of this program is:

Consider a system with 3 processes that share 4 instances of the same resource type. Each process can request a maximum of $K$ instances. Resource instances can be requested and released only one at a time.

The largest value of $K$ that will always avoid deadlock is __________.

Consider the following processor design characteristics.

I. Register-to-register arithmetic operations only
II. Fixed-length instruction format
III. Hardwired control unit

Which of the characteristics above are used in the design of a RISC processor?

The value of

correct to three decimal places, assuming that $\pi=3.14$, is __________.

Consider a sequential circuit with two positive-edge-triggered D flip-flops connected in series.

• The input in is connected to the D input of the first flip-flop.
• The output $Q$ of the first flip-flop is connected to the D input of the second flip-flop.
• The output $Q$ of the second flip-flop is out.
• Both flip-flops share the same clock.

The number of states in the state transition diagram of this circuit that have a transition back to the same state on some value of in is __________.

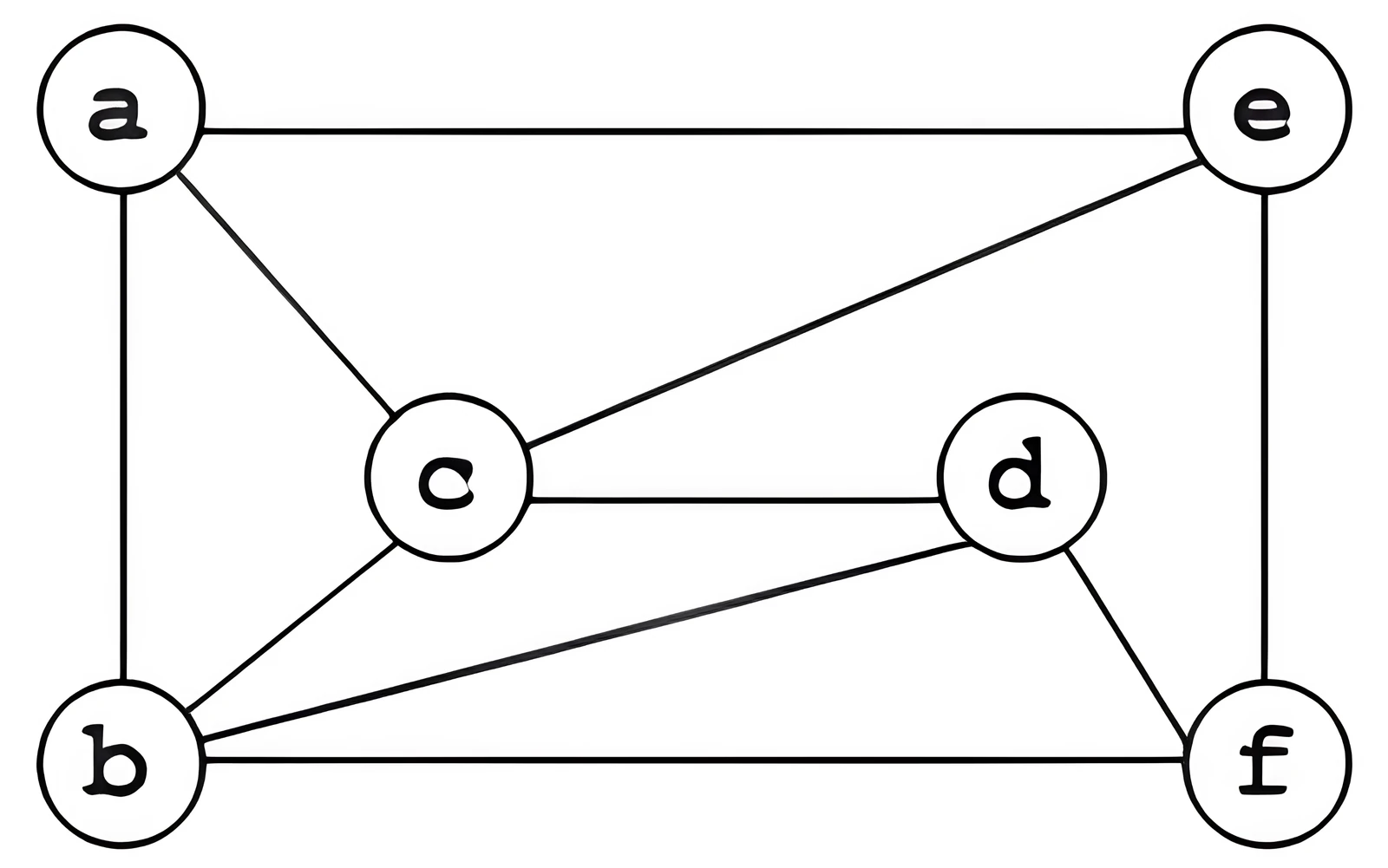

The chromatic number of the following graph is __________.

Assume that multiplying a matrix $G_1$ of dimension $p \times q$ with another matrix $G_2$ of dimension $q \times r$ requires $pqr$ scalar multiplications.

Computing the product of $n$ matrices $G_1G_2G_3\ldots G_n$ can be done by parenthesizing in different ways. Define $G_iG_{i+1}$ as an explicitly computed pair for a given parenthesization if they are directly multiplied.

For example, in the matrix multiplication chain $G_1G_2G_3G_4G_5G_6$ using parenthesization

$G_2G_3$ and $G_5G_6$ are the only explicitly computed pairs.

Consider a matrix multiplication chain $F_1F_2F_3F_4F_5$, where matrices $F_1,F_2,F_3,F_4$ and $F_5$ are of dimensions $2\times25$, $25\times3$, $3\times16$, $16\times1$ and $1\times1000$, respectively.

In the parenthesization of $F_1F_2F_3F_4F_5$ that minimizes the total number of scalar multiplications, the explicitly computed pairs is/are:

Consider the following problems. $L(G)$ denotes the language generated by a grammar $G$. $L(M)$ denotes the language accepted by a machine $M$.

I. For an unrestricted grammar $G$ and a string $w$, whether $w \in L(G)$.

II. Given a Turing machine $M$, whether $L(M)$ is regular.

III. Given two grammars $G_1$ and $G_2$, whether $L(G_1)=L(G_2)$.

IV. Given an NFA $N$, whether there is a deterministic PDA $P$ such that $N$ and $P$ accept the same language.

Which one of the following statements is correct?

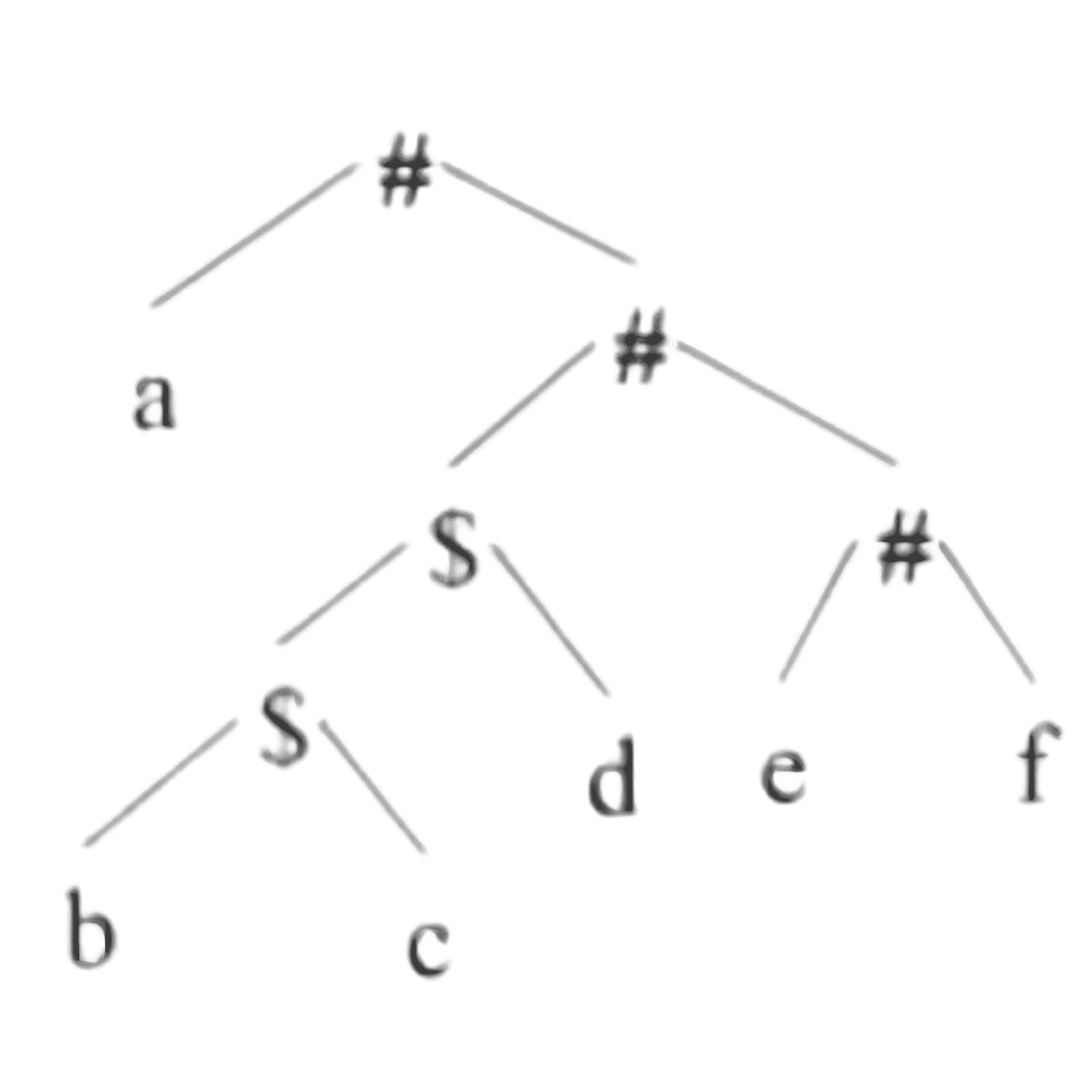

Consider the following parse tree for the expression a#b$c$d#e#f, involving two binary operators $ and #.

Which one of the following is correct for the given parse tree?

Consider the following C code. Assume that unsigned long int type length is 64 bits.

unsigned long int fun(unsigned long int n) {
    unsigned long int i, j = 0, sum = 0;
    for (i = n; i > 1; i = i/2) j++;
    for ( ; j > 1; j = j/2) sum++;
    return(sum);
}

The value returned when we call fun with the input $2^{40}$ is:

A lexical analyzer uses the following patterns to recognize three tokens $T_1,T_2$ and $T_3$ over the alphabet $\{a,b,c\}$.

Note that $x?$ means 0 or 1 occurrence of the symbol $x$. Note also that the analyzer outputs the token that matches the longest possible prefix.

If the string bbaacabc is processed by the analyzer, which one of the following is the sequence of tokens it outputs?

Consider the following languages:

I. $\{a^m b^n c^p d^q \mid m+p=n+q,\ \text{where } m,n,p,q\ge0\}$

II. $\{a^m b^n c^p d^q \mid m=n \text{ and } p=q,\ \text{where } m,n,p,q\ge0\}$

III. $\{a^m b^n c^p d^q \mid m=n=p \text{ and } p\ne q,\ \text{where } m,n,p,q\ge0\}$

IV. $\{a^m b^n c^p d^q \mid mn=p+q,\ \text{where } m,n,p,q\ge0\}$

Which of the languages above are context-free?

Consider the following C program:

#include<stdio.h>

void fun1(char *s1, char *s2) {
    char *tmp;
    tmp = s1;
    s1 = s2;
    s2 = tmp;
}

void fun2(char **s1, char **s2) {
    char *tmp;
    tmp = *s1;
    *s1 = *s2;
    *s2 = tmp;
}

int main() {
    char *str1 = "Hi", *str2 = "Bye";
    fun1(str1, str2);
    printf("%s %s ", str1, str2);
    fun2(&str1, &str2);
    printf("%s %s", str1, str2);
    return 0;
}

The output of the program above is:

Consider the unsigned 8-bit fixed point binary number representation below:

where the position of the binary point is between $b_3$ and $b_2$. Assume $b_7$ is the most significant bit.

Some of the decimal numbers listed below cannot be represented exactly in the above representation:

(i) 31.500

(ii) 0.875

(iii) 12.100

(iv) 3.001

Which one of the following statements is true?

Consider the following solution to the producer-consumer synchronization problem. The shared buffer size is $N$.

Three semaphores empty, full and mutex are defined with respective initial values of $0$, $N$ and $1$.

Semaphore empty denotes the number of available slots in the buffer for the consumer to read from. Semaphore full denotes the number of available slots in the buffer for the producer to write to.

The placeholder variables, denoted by P, Q, R and S, in the code below can be assigned either empty or full. The valid semaphore operations are wait() and signal().

Producer:
do {
    wait(P);
    wait(mutex);
    // Add item to buffer
    signal(mutex);
    signal(Q);
} while(1);

Consumer:
do {
    wait(R);
    wait(mutex);
    // Consume item from buffer
    signal(mutex);
    signal(S);
} while(1);

Which one of the following assignments to P, Q, R and S will yield the correct solution?

Consider the first-order logic sentence

where $\psi(s,t,u,v,w,x,y)$ is a quantifier-free first-order logic formula using only predicate symbols, and possibly equality, but no function symbols. Suppose $\varphi$ has a model with a universe containing 7 elements.

Which one of the following statements is necessarily true?

In a system, there are three types of resources: E, F and G. Four processes $P_0,P_1,P_2$ and $P_3$ execute concurrently.

At the outset, the processes have declared their maximum resource requirements using a matrix named Max. The number of instances of the resources allocated to the various processes at any given state is given by a matrix named Allocation.

Consider a state of the system with the Allocation matrix as shown below, and in which 3 instances of E and 3 instances of F are the only resources available.

From the perspective of deadlock avoidance, which one of the following is true?

Consider a matrix $P$ whose only eigenvectors are the multiples of

Consider the following statements.

I. $P$ does not have an inverse.

II. $P$ has a repeated eigenvalue.

III. $P$ cannot be diagonalized.

Which one of the following options is correct?

The size of the physical address space of a processor is $2^P$ bytes. The word length is $2^W$ bytes. The capacity of cache memory is $2^N$ bytes. The size of each cache block is $2^M$ words.

For a $K$-way set-associative cache memory, the length, in number of bits, of the tag field is:

Let $G$ be a simple undirected graph. Let $T_D$ be a depth-first search tree of $G$. Let $T_B$ be a breadth-first search tree of $G$.

Consider the following statements.

I. No edge of $G$ is a cross edge with respect to $T_D$. A cross edge in $G$ is between two nodes neither of which is an ancestor of the other in $T_D$.

II. For every edge $(u,v)$ of $G$, if $u$ is at depth $i$ and $v$ is at depth $j$ in $T_B$, then $|i-j|=1$.

Which of the statements above must necessarily be true?

Let $\mathbb{N}$ be the set of natural numbers. Consider the following sets.

P: Set of rational numbers, positive and negative.

Q: Set of functions from $\{0,1\}$ to $\mathbb{N}$.

R: Set of functions from $\mathbb{N}$ to $\{0,1\}$.

S: Set of finite subsets of $\mathbb{N}$.

Which of the sets above are countable?

Given a language $L$, define $L^i$ as follows:

The order of a language $L$ is defined as the smallest $k$ such that

Consider the language $L_1$ over alphabet $\{0\}$ accepted by the following automaton.

The order of $L_1$ is __________.

Consider the minterm list form of a Boolean function $F$ given below.

Here, $m$ denotes a minterm and $d$ denotes a don't care term.

The number of essential prime implicants of the function $F$ is __________.

Consider the weights and values of items listed below. There is only one unit of each item.

The task is to pick a subset of these items such that their total weight is no more than 11 Kgs and their total value is maximized. No item may be split.

The total value of items picked by an optimal algorithm is denoted by $V_{opt}$.

A greedy algorithm sorts the items by their value-to-weight ratios in descending order and packs them greedily, starting from the first item in the ordered list. The total value of items picked by the greedy algorithm is denoted by $V_{greedy}$.

The value of

is __________.

Consider an IP packet with a length of 4,500 bytes that includes a 20-byte IPv4 header and a 40-byte TCP header.

The packet is forwarded to an IPv4 router that supports a Maximum Transmission Unit (MTU) of 600 bytes.

Assume that the length of the IP header in all the outgoing fragments of this packet is 20 bytes.

Assume that the fragmentation offset value stored in the first fragment is 0.

The fragmentation offset value stored in the third fragment is __________.

A processor has 16 integer registers $(R0,R1,\ldots,R15)$ and 64 floating point registers $(F0,F1,\ldots,F63)$.

It uses a 2-byte instruction format.

There are four categories of instructions:

• Type-1: 4 instructions, each with 3 integer register operands $(3R)$.
• Type-2: 8 instructions, each with 2 floating point register operands $(2F)$.
• Type-3: 14 instructions, each with one integer register operand and one floating point register operand $(1R+1F)$.
• Type-4: $N$ instructions, each with one floating point register operand $(1F)$.

The maximum value of $N$ is __________.

Consider a simple communication system where multiple nodes are connected by a shared broadcast medium, like Ethernet or wireless.

The nodes use the following carrier-sense based medium access protocol:

A node that receives a packet to transmit will carrier-sense the medium for 5 units of time. If the node does not detect any other transmission in this duration, it starts transmitting its packet in the next time unit.

If the node detects another transmission, it waits until this other transmission finishes, and then begins to carrier-sense for 5 time units again.

Once they start to transmit, nodes do not perform any collision detection and continue transmission even if a collision occurs.

All transmissions last for 20 units of time. The transmission signal travels at the speed of 10 meters per unit time in the medium.

Assume that the system has two nodes $P$ and $Q$, located at a distance $d$ meters from each other.

$P$ starts transmitting a packet at time $t=0$ after successfully completing its carrier-sense phase. Node $Q$ has a packet to transmit at time $t=0$ and begins to carrier-sense the medium.

The maximum distance $d$, in meters, rounded to the closest integer, that allows $Q$ to successfully avoid a collision between its proposed transmission and $P$'s ongoing transmission is __________.

Consider the relations $r(A,B)$ and $s(B,C)$, where $s.B$ is a primary key and $r.B$ is a foreign key referencing $s.B$.

Consider the query:

Let LOJ denote the natural left outer-join operation. Assume that $r$ and $s$ contain no null values.

Which one of the following queries is NOT equivalent to $Q$?

Let $G$ be a graph with $100!$ vertices, with each vertex labelled by a distinct permutation of the numbers $1,2,\ldots,100$.

There is an edge between vertices $u$ and $v$ if and only if the label of $u$ can be obtained by swapping two adjacent numbers in the label of $v$.

Let $y$ denote the degree of a vertex in $G$, and $z$ denote the number of connected components in $G$.

Then,

Consider the following four relational schemas. For each schema, all non-trivial functional dependencies are listed. The underlined attributes are the respective primary keys.

Schema I: Registration(rollno, courses)

Field courses is a set-valued attribute containing the set of courses a student has registered for.

Functional dependency:

Schema II: Registration(rollno, courseid, email)

Functional dependencies:

Schema III: Registration(rollno, courseid, marks, grade)

Functional dependencies:

Schema IV: Registration(rollno, courseid, credit)

Functional dependencies:

Which one of the relational schemas above is in 3NF but not in BCNF?

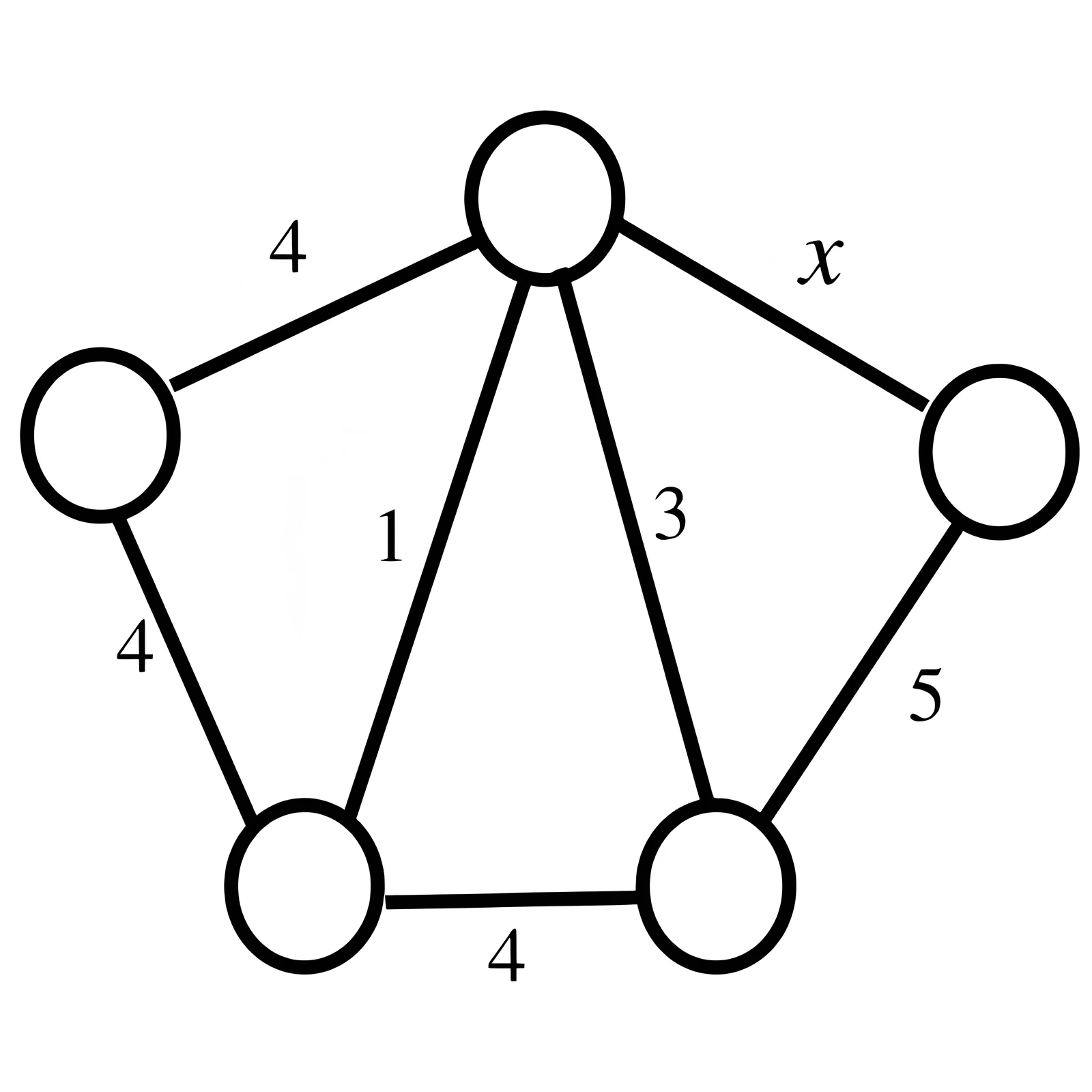

Consider the following undirected graph $G$:

Choose a value for $x$ that will maximize the number of minimum weight spanning trees (MWSTs) of $G$.

The number of MWSTs of $G$ for this value of $x$ is __________.

Consider Guwahati $(G)$ and Delhi $(D)$ whose temperatures can be classified as high $(H)$, medium $(M)$ and low $(L)$.

The conditional probabilities for Delhi's temperature given Guwahati's temperature are:

It is known that:

The probability, correct to two decimal places, that Guwahati has high temperature given that Delhi has high temperature is __________.

The instruction pipeline of a RISC processor has the following stages:

1. Instruction Fetch (IF)
2. Instruction Decode (ID)
3. Operand Fetch (OF)
4. Perform Operation (PO)
5. Writeback (WB)

The IF, ID, OF and WB stages take 1 clock cycle each for every instruction.

Consider a sequence of 100 instructions. In the PO stage:

• 40 instructions take 3 clock cycles each,
• 35 instructions take 2 clock cycles each,
• the remaining 25 instructions take 1 clock cycle each.

Assume that there are no data hazards and no control hazards.

The number of clock cycles required for completion of execution of the sequence of instructions is __________.

Consider the following program written in pseudo-code. Assume that x and y are integers.

Count(x,y) {
    if (y != 1) {
        if (x != 1) {
            print("*");
            Count(x/2, y);
        }
        else {
            y = y - 1;
            Count(1024, y);
        }
    }
}

The number of times that the print statement is executed by the call

Count(1024,1024)

is __________.

Consider a storage disk with 4 platters, numbered 0, 1, 2 and 3, 200 cylinders, numbered 0, 1, ..., 199, and 256 sectors per track, numbered 0, 1, ..., 255.

The following 6 disk requests of the form [sector number, cylinder number, platter number] are received by the disk controller at the same time:

[120, 72, 2], [180, 134, 1], [60, 20, 0], [212, 86, 3], [56, 116, 2], [118, 16, 1]

Currently the head is positioned at sector number 100 of cylinder 80, and is moving towards higher cylinder numbers.

The average power dissipation in moving the head over 100 cylinders is 20 milliwatts and for reversing the direction of the head movement once is 15 milliwatts.

Power dissipation associated with rotational latency and switching of head between different platters is negligible.

The total power consumption in milliwatts to satisfy all of the above disk requests using the Shortest Seek Time First disk scheduling algorithm is __________.

The number of possible min-heaps containing each value from

exactly once is __________.
